TP3076 - PCM CODEC/Filter

Texas Instruments

📥 Download Datasheet

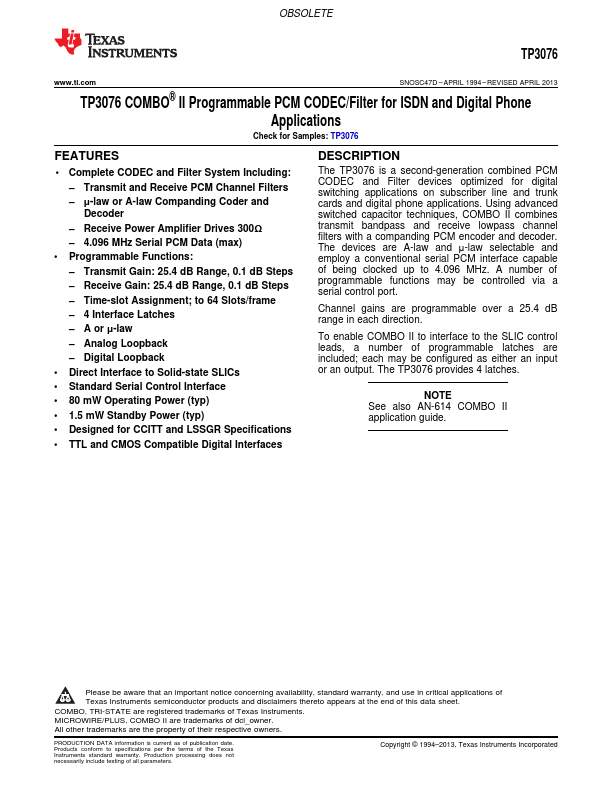

TP3076 Datasheet Preview — Preview of TP3076 PDF

Datasheet Details

Part number: TP3076
Manufacturer: Texas Instruments ↗
File Size: 405.13 KB
Datasheet: TP3076-etcTI.pdf
Description: PCM CODEC/Filter

TP3076 Product details

Description

The TP3076 is a second-generation combined PCM CODEC and Filter devices optimized for digital switching applications on subscriber line and trunk cards and digital phone applications.

Features

1.
234 Complete CODEC and Filter System Including:.
Transmit and Receive PCM Channel Filters.
μ-law or A-law Companding Coder and Decoder.
Receive Power Amplifier Drives 300Ω.
4.096 MHz Serial PCM Data (max).
Programmable Functions:.
Transmit Gain: 25.4 dB Range, 0.1 dB Steps.
Receive Gain: 25.4 dB Range, 0.1 dB Steps.
Time-slot Assignment; to 64 Slots/frame.
4 Interface Latches.
A or μ-law.
