TPA3116 Datasheet - Texas Instruments

TPA3116 Filter-Free Class-D Stereo Amplifier

The TPA31xxD2 series are stereo efficient, digital amplifier power stage for driving speakers up to 100 W / 2 Ω in mono. The high efficiency of the TPA3130D2 allows it to do 2 × 15 W without external heat sink on a single layer PCB. The TPA3118D2 can even run 2 × 30 W / 8 Ω without heat sink on a du.

TPA3116 Features

* 1 Supports Multiple Output Configurations

* 2 × 50 W Into a 4-Ω BTL Load at 21 V (TPA3116D2)

* 2 × 30 W Into a 8-Ω BTL Load at 24 V (TPA3118D2)

* 2 × 15 W Into a 8-Ω BTL Load at 15 V (TPA3130D2)

* Wide Voltage Range: 4.5 V to 26 V

* Efficient Class-D

TPA3116 Datasheet (2.86 MB)

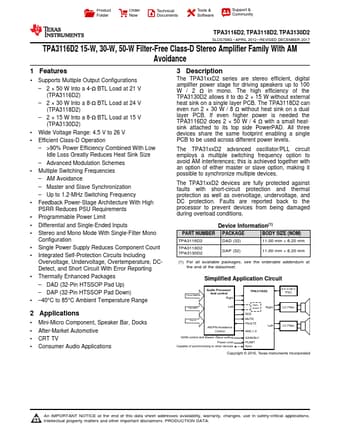

TPA3116 Datasheet Preview — Preview of TPA3116 PDF

Datasheet Details

Part number:

TPA3116

Manufacturer:

Texas Instruments ↗

File Size:

2.86 MB

Description:

Filter-free class-d stereo amplifier.
