TPD4E05U06 - ESD Protection

Texas Instruments

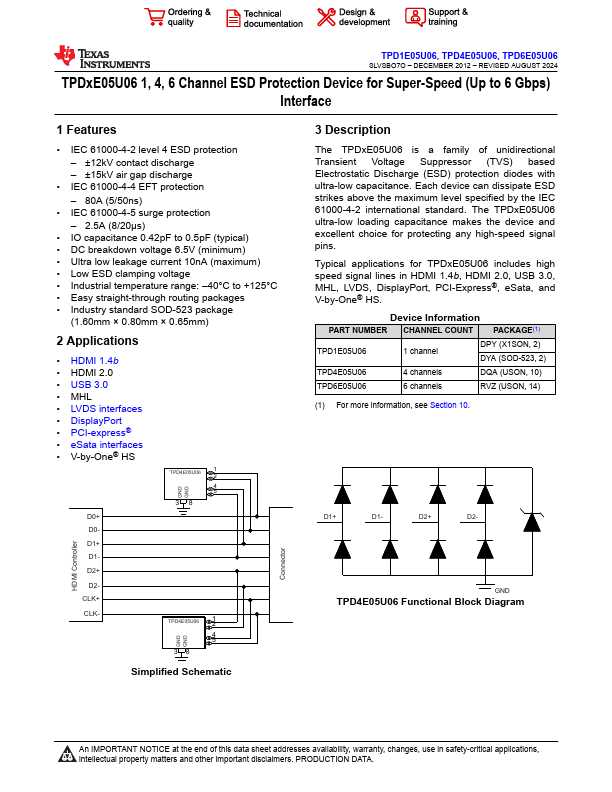

TPD4E05U06 Datasheet Preview — Preview of TPD4E05U06 PDF

Datasheet Details

Part number	TPD4E05U06
Manufacturer	Texas Instruments ↗
File Size	2.66 MB
Description	ESD Protection
Datasheet	TPD4E05U06-etcTI.pdf

TPD4E05U06 Product details

Description

The TPDxE05U06 is a family of unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diodes with ultra-low capacitance.

Features

IEC 61000-4-2 level 4 ESD protection.
±12kV contact discharge.
±15kV air gap discharge.
IEC 61000-4-4 EFT protection.
80A (5/50ns).
IEC 61000-4-5 surge protection.
2.5A (8/20µs).
IO capacitance 0.42pF to 0.5pF (typical).
DC breakdown voltage 6.5V (minimum).
Ultra low leakage current 10nA (maximum).
Low ESD clamping voltage.
Industrial temperature range:.
40°C to +125°C.
