TPS2400 - Overvoltage Protection Controller

Description

The TPS2400 overvoltage protection controller is used with an external N-channel MOSFET to isolate sensitive electronics from destructive voltage spikes and surges.

Features

  • 1 Up to 100-V Overvoltage Protection.
  • 6.9-V Overvoltage Shutdown Threshold.
  • 3-V Undervoltage Shutdown Threshold.
  • Overvoltage Turnoff Time Less than 1 µs.
  • External N-Channel MOSFET Driven by Internal Charge Pump.
  • 1-mA Maximum Static Supply Current.
  • 5-Pin SOT.
  • 23 Package.
  • 40°C to 85°C Ambient Temperature Range.
  • 2.5-kV Human-Body-Model, 500-V CDM Electrostatic Discharge Protection 2.

📥 Download Datasheet

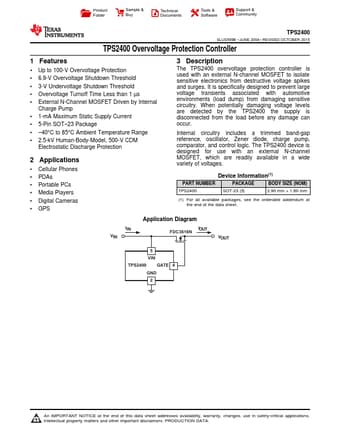

Datasheet preview – TPS2400
