TPS3435 - Nano IQ Precision Timeout Watchdog Timer

Texas Instruments

📥 Download Datasheet

TPS3435 Datasheet Preview — Preview of TPS3435 PDF

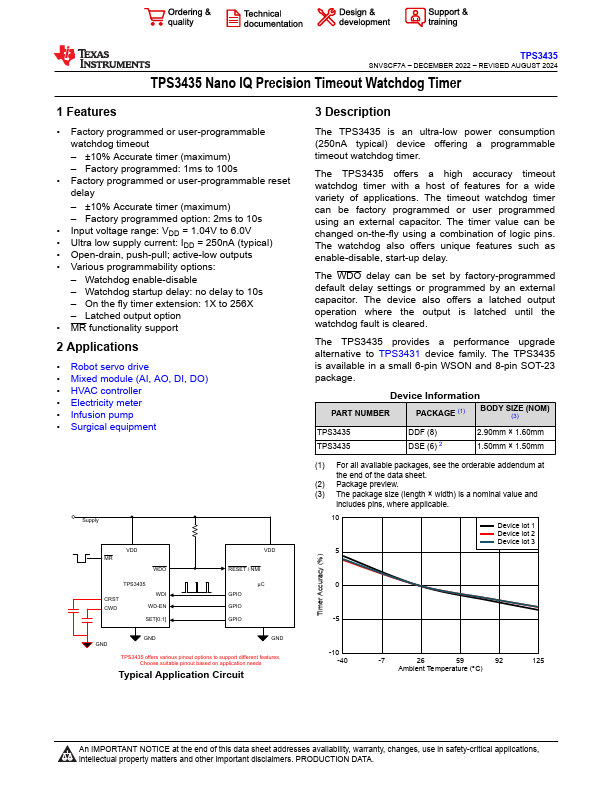

datasheet Preview Page 2

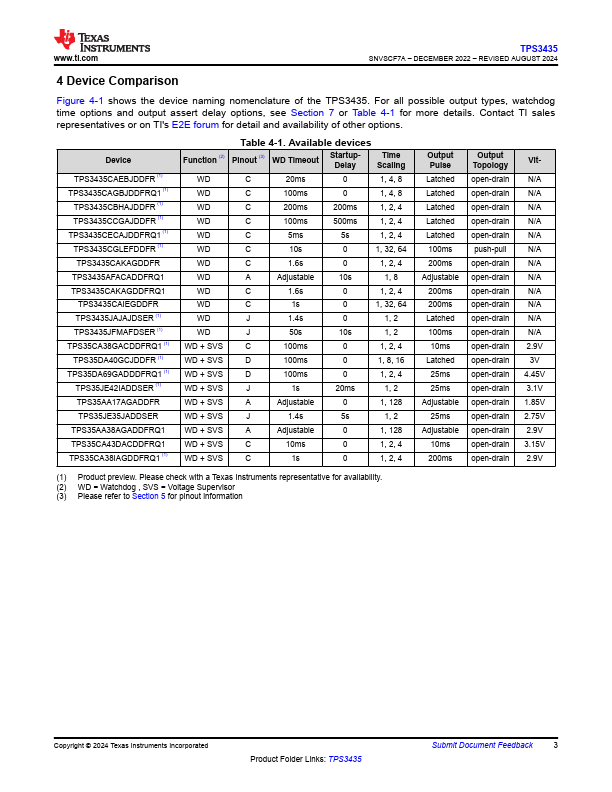

datasheet Preview Page 3

Datasheet Details

Part number	TPS3435
Manufacturer	Texas Instruments
File Size	1.68 MB
Description	Nano IQ Precision Timeout Watchdog Timer
Datasheet	TPS3435-etcTI.pdf

TPS3435 Product details

Description

The TPS3435 is an ultra-low power consumption (250nA typical) device offering a programmable timeout watchdog timer.

Features

Factory programmed or user-programmable watchdog timeout.
±10% Accurate timer (maximum).
Factory programmed: 1ms to 100s.
Factory programmed or user-programmable reset delay.
±10% Accurate timer (maximum).
Factory programmed option: 2ms to 10s.
Input voltage range: VDD = 1.04V to 6.0V.
Ultra low supply current: IDD = 250nA (typical).
Open-drain, push-pull; active-low outputs.
Various programmability option.
