TPS610891, TPS61089 - Synchronous Boost Converter

Texas Instruments

The TPS610891 by Texas Instruments is a Synchronous Boost Converter. Below is the official datasheet preview.

📥 Download Datasheet

TPS610891 Synchronous Boost Converter by Texas Instruments - Datasheet Preview — Official preview page of the TPS610891 Synchronous Boost Converter datasheet (Texas Instruments).

Datasheet Details

Part number	TPS610891, TPS61089
Manufacturer	Texas Instruments
File Size	1.65 MB
Description	Synchronous Boost Converter
Datasheet	TPS61089-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TPS610891, TPS61089. Please refer to the document for exact specifications by model.

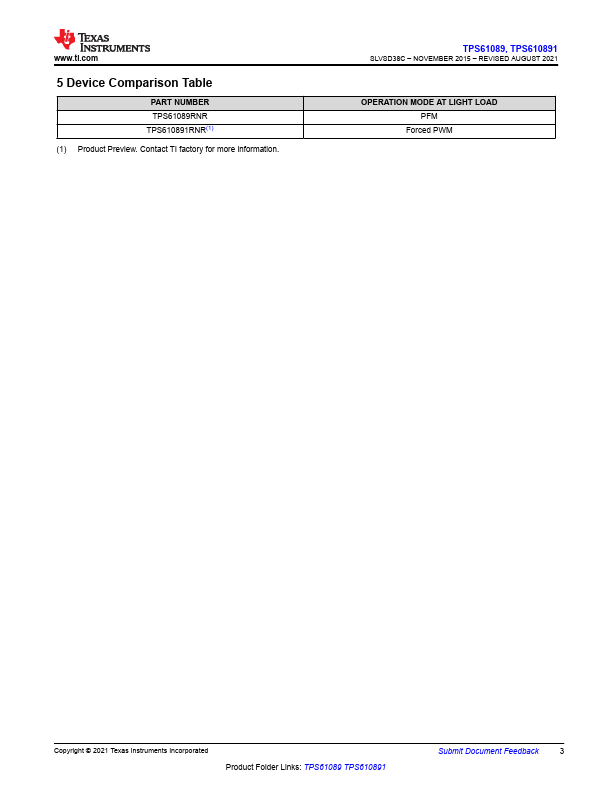

Additional preview pages of the TPS610891 datasheet.

TPS610891 Product details

Description

The TPS61089x represents the TPS61089 and the TPS610891.

Features

Input voltage range: 2.7 V to 12 V.
Output voltage range: 4.5 V to 12.6 V.
Up to 90% efficiency at VIN = 3.3 V, VOUT = 9 V, and IOUT = 2 A.
Resistor-programmable peak current limit up to 10 A for high pulse current.
Adjustable switching frequency: 200 kHz to 2.2 MHz.
4-ms built-in soft start time.
PFM operation mode at light load (TPS61089).
Forced PWM operation mode at light load (TPS610891).
Internal output over.
