TPS65270 Datasheet - Texas Instruments

TPS65270 Dual Synchronous StepDown Regulator

The TPS65270 is a monolithic, dual synchronous buck regulator with a wide operating input voltage that can operate in 5-V, 9-V, 12-V, or 15-V bus voltages and battery chemistries. The converters are designed to simplify its application while giving the designer the option to optimize their usage acc.

TPS65270 Features

* 1 Wide Input Supply Voltage Range: 4.5 V to 18 V

* 0.8 V, ±1% Accuracy Reference

* Up to 2-A (Buck 1) and 3-A (Buck 2) Maximum Continuous Output Loading Current

* Low-Power Pulse Skipping Mode to Achieve High Light Load Efficiency

* Adjustable Switching Frequ

TPS65270 Datasheet (3.16 MB)

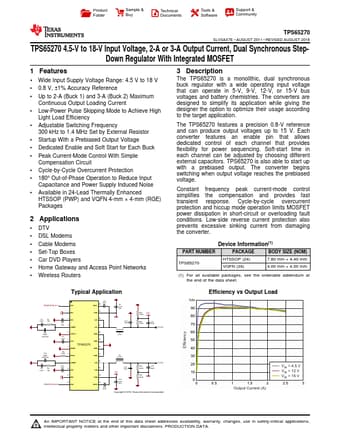

Preview of TPS65270 PDF

Datasheet Details

Part number:

TPS65270

Manufacturer:

Texas Instruments ↗

File Size:

3.16 MB

Description:

Dual synchronous stepdown regulator.
