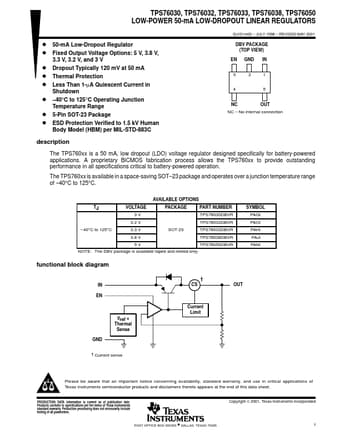

TPS76032 Datasheet Preview Page 2 TPS76032 Datasheet Preview Page 3

Datasheet Details

Part number:

TPS76032, TPS760

Manufacturer:

Texas Instruments ↗

File Size:

971.17 KB

Description:

Low-power 50-ma low-dropout linear regulator.

Note:

This datasheet PDF includes multiple part numbers: TPS76032, TPS760.
Please refer to the document for exact specifications by model.

TPS76032, TPS760, LOW-POWER 50-mA LOW-DROPOUT LINEAR REGULATOR

The TPS760xx is a 50 mA, low dropout (LDO) voltage regulator designed specifically for battery-powered applications.

A proprietary BiCMOS fabrication process allows the TPS760xx to provide outstanding performance in all specifications critical to battery-powered operation.

The TPS760xx is available

TPS76030, TPS76032, TPS76033, TPS76038, TPS76050 LOW-POWER 50-mA LOW-DROPOUT LINEAR REGULATORS D 50-mA Low-Dropout Regulator D Fixed Output Voltage Options: 5 V, 3.8 V, 3.3 V, 3.2 V, and 3 V D Dropout Typically 120 mV at 50 mA D Thermal Protection D Less Than 1-µA Quiescent Current in Shutdown D 40°C to 125°C Operating Junction Temperature Range D 5-Pin SOT-23 Package D ESD Protection Verified to 1.5 kV Human Body Model (HBM) per MIL-STD-883C SLVS144D JULY 1998 REV
