TPS7A3401

Low-Noise Negative Voltage Regulator

TPS7A3401 Features

* 1 Input Voltage Range:

* 3 V to

* 20 V

* Noise:

* 80 μVRMS (10 Hz to 100 kHz)

* Power-Supply Ripple Rejection:

* 50 dB (1 kHz)

* ≥ 27 dB (10 Hz to 1 MHz)

* Adjustable Output: Approximately

* 1.18 V to

* 18 V

TPS7A3401 Datasheet (1.03 MB)

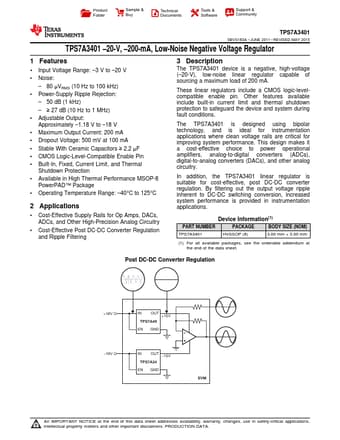

Preview of TPS7A3401 PDF

Datasheet Details

Part number:

TPS7A3401

Manufacturer:

Texas Instruments ↗

File Size:

1.03 MB

Description:

Low-noise negative voltage regulator.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPS7A3401 SBVS163A

* JUNE 2011

* REVISED MAY.
