TPS7A96 - RF Voltage Regulator

Texas Instruments

The TPS7A96 by Texas Instruments is a RF Voltage Regulator. Below is the official datasheet preview.

📥 Download Datasheet

TPS7A96 RF Voltage Regulator by Texas Instruments - Datasheet Preview — Official preview page of the TPS7A96 RF Voltage Regulator datasheet (Texas Instruments).

Datasheet Details

Part number	TPS7A96
Manufacturer	Texas Instruments
File Size	3.62 MB
Description	RF Voltage Regulator
Datasheet	TPS7A96-etcTI.pdf

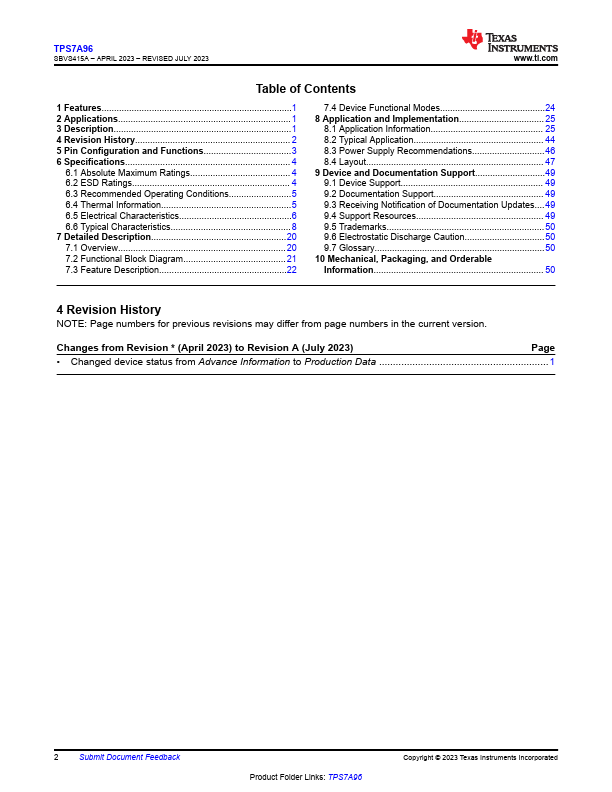

Additional preview pages of the TPS7A96 datasheet.

TPS7A96 Product details

Description

The TPS7A96 is an ultra-low noise (0.5 μVRMS), lowdropout (LDO) voltage regulator capable of sourcing 2 A with only 200 mV of dropout.

Features

Ultra-low output noise:.
0.5 μVRMS (typ, 10 Hz to 100 kHz).
High power-supply ripple rejection (PSRR):.
94 dB at 100Hz.
104 dB at 1 kHz.
76 dB at 10 kHz.
58 dB at 100 kHz.
48 dB at 1 MHz.
Accuracy over line, load, and temperature: 1%.
Low dropout: 160 mV at 2 A.
Wide input voltage range: 1.9 V to 5.7 V.
Wide output voltage range: 0.4 V to 5.5 V.
Parallelable for lower noise and h.
