TPS7B6933

40-V Ultralow-Quiescent-Current LDO

TPS7B6933 Features

* 1 4-V to 40-V Wide VI Input Voltage Range With up to 45-V Transient

* Maximum Output Current: 150 mA

* Low Quiescent Current (IQ):

* 15 µA Typical at Light Loads

* 25 µA Maximum Under Full Temperature

* 450-mV Typical Low Dropout Voltage at 100 mA Loa

TPS7B6933 General Description

The TPS7B69xx device is a low-dropout linear regulator that operates at up to 40-V VI. With only 15-µA (typical) quiescent current at light load, the device is applicable for standby microcontrol-unit systems, especially for always-on applications like emeters, fire alarms, and smoke detectors. The .

TPS7B6933 Datasheet (1.25 MB)

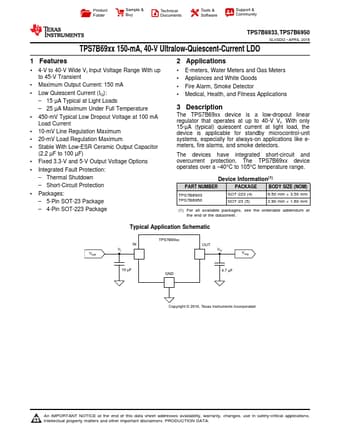

Preview of TPS7B6933 PDF

Datasheet Details

Part number:

TPS7B6933

Manufacturer:

Texas Instruments ↗

File Size:

1.25 MB

Description:

40-v ultralow-quiescent-current ldo.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPS7B6933, TPS7B6950 SLVSDI2

* APRIL 2016 TPS7B69xx .
