TRF1015 - RF DOWNCONVERTER

The Texas Instruments (TI™) TRF1015 is a single-chip RF downconverter suitable for 900-MHz receiver applications.

It combines a low-noise amplifier (LNA), a buffered voltage-controlled oscillator (VCO), and an RF mixer into a 20-pin SSOP package requiring very few external components.

Minimal power

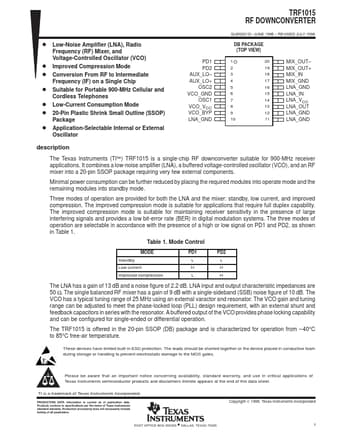

TRF1015 RF DOWNCONVERTER D Low-Noise Amplifier (LNA), Radio Frequency (RF) Mixer, and Voltage-Controlled Oscillator (VCO) D Improved Compression Mode D Conversion From RF to Intermediate Frequency (IF) on a Single Chip D Suitable for Portable 900-MHz Cellular and Cordless Telephones D Low-Current Consumption Mode D 20-Pin Plastic Shrink Small Outline (SSOP) Package D Application-Selectable Internal or External Oscillator PD1 PD2 AUX_LO AUX_LO+ OSC2 VCO_GND OSC1 VCO_VCC VCO_BYP LNA_GND

TRF1015-etcTI.pdf

TRF1015 Datasheet Preview — Preview of TRF1015 PDF

Datasheet Details

Part number:

TRF1015

Manufacturer:

Texas Instruments ↗

File Size:

281.65 KB

Description:

Rf downconverter.
