TUSS4440 Transformer Drive Ultrasonic Sensor

TUSS4440 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community TUSS4440 SLDS250 * DECEMBER 2019 TUSS4440 Transformer D.
The TUSS4440 is a highly integrated transformer drive analog front end for industrial ultrasonic applications.

TUSS4440 Applications

* 86-dB input dynamic range analog front-end
* First stage low noise amplifier adjustable to 10, 12.5, 15 and 20 V/V
* Configurable bandpass filter from 40 KHz to 500 KHz
* Wide-band logarithmic amplifier
* Supported transducer frequencies (controlled by exter

📥 Download Datasheet

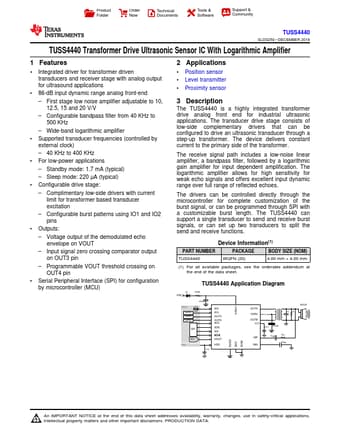

Preview of TUSS4440 PDF
datasheet Preview Page 2 datasheet Preview Page 3
