TXS0102 - 2-Bit Bidirectional Voltage-Level Translator

Texas Instruments

📥 Download Datasheet

TXS0102 Datasheet Preview — Preview of TXS0102 PDF

Datasheet Details

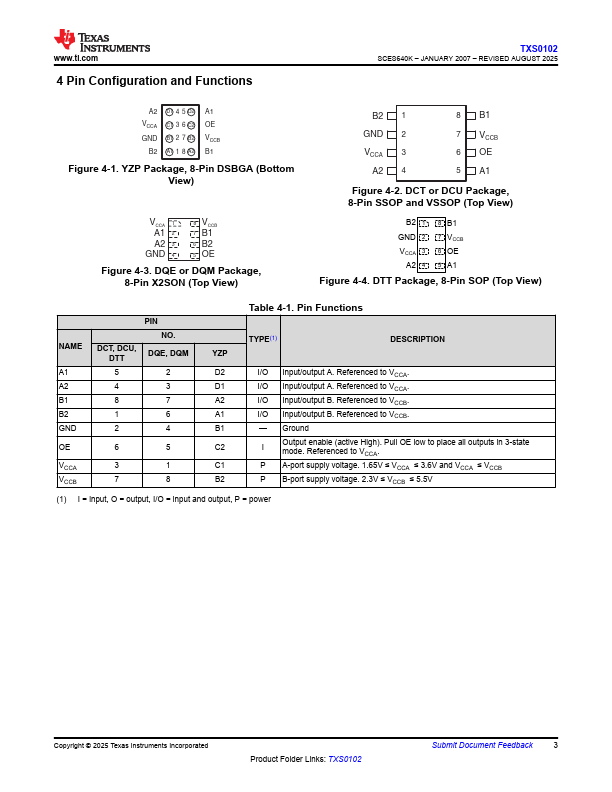

Part number: TXS0102
Manufacturer: Texas Instruments ↗
File Size: 1.39 MB
Datasheet: TXS0102-etcTI.pdf
Description: 2-Bit Bidirectional Voltage-Level Translator

TXS0102 Product details

Description

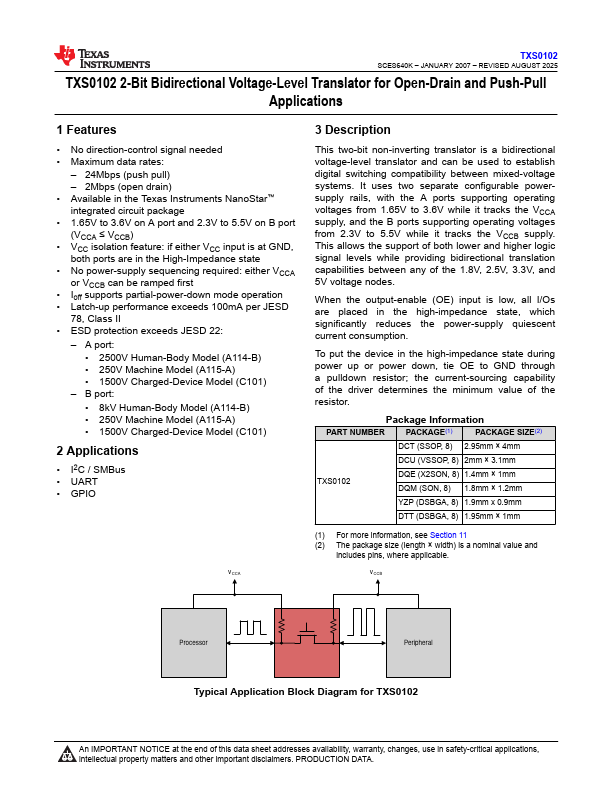

This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems..

Features

No direction-control signal needed.
Maximum data rates:.
24 Mbps (push pull).
2 Mbps (open drain).
Available in the Texas Instruments NanoStar™ integrated circuit package.
1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (VCCA ≤ VCCB).
VCC isolation feature: if either VCC input is at GND, both ports are in the High-Impedance state.
No power-supply sequencing required: either VCCA or VCCB can be ramped first.
