TXS0104E-Q1

Voltage-Level Translator

TXS0104E-Q1 Features

* Qualified for automotive applications

* AEC-Q100 qualified with the following results:

* Device temperature grade 1:

* 40°C to +125°C ambient operating temperature range

* Device HBM ESD Classification Level 2

* Device CDM ESD Classification Level C6

TXS0104E-Q1 General Description

The TXS0104E-Q1 device connects an incompatible logic communication from chip-to-chip due to voltage mismatch. This auto-direction translator can be conveniently used to bridge the gap without the need of direction control from the host. Each channel can be mixed and matched with different output t.

TXS0104E-Q1 Datasheet (1.45 MB)

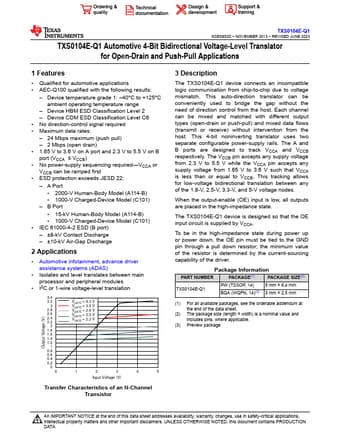

Preview of TXS0104E-Q1 PDF

Datasheet Details

Part number:

TXS0104E-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.45 MB

Description:

Voltage-level translator.
TXS0104E-Q1 SCES853D

* NOVEMBER 2013

* REVISED JUNE 2023 TXS0104E-Q1 Automotive 4-Bit Bidirectional Voltage-Level Translator for Open-.
