UC1842A - Current-Mode PWM Controllers

Product Overview

Texas Instruments

📥 Download Datasheet

UC1842A Current-Mode PWM Controllers by Texas Instruments - Datasheet Preview — Datasheet preview – UC1842A

Datasheet Details

Part number	UC1842A
Manufacturer	Texas Instruments
File Size	2.81 MB
Description	Current-Mode PWM Controllers
Datasheet	UC1842A Datasheet

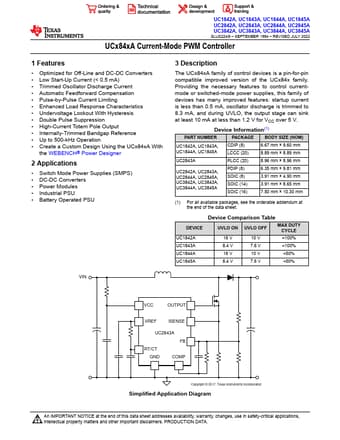

Additional preview pages of the UC1842A datasheet.

Product details

Description

The UCx84xA family of control devices is a pin-for-pin compatible improved version of the UCx84x family.

Features

Optimized for Off-Line and DC-DC Converters.
Low Start-Up Current (< 0.5 mA).
Trimmed Oscillator Discharge Current.
Automatic Feedforward Compensation.
Pulse-by-Pulse Current Limiting.
Enhanced Load Response Characteristics.
Undervoltage Lockout With Hysteresis.
Double Pulse Suppression.
High-Current Totem Pole Output.
Internally-Trimmed Bandgap Reference.
Up to 500-kHz Operation.
Create.
