UC1843A-EP - Current-Mode PWM Controllers

This page provides the datasheet information for the UC1843A-EP, a member of the UC1842A-EP Current-Mode PWM Controllers family.

Datasheet Summary

Description

The UC1842A/3A/4A/5A family of control ICs is a pin-for-pin compatible improved version of the UC3842/3/4/5 family.

Features

  • to control current mode switched mode power supplies, this family has the following improved features. Start up current is guaranteed to be less than 0.5 mA. Oscillator discharge is trimmed to 8.3 mA. During under voltage lockout, the output stage can sink at least 10 mA at less than 1.2 V for VCC over 5 V. The difference between members of this family are shown in the table below. PART NUMBER UC1842A UC1843A UC1844A UC1845A UVLO ON 16 V 8.5 V 16 V 8.5 V UVLO OFF 10 V 7.9 V 10 V 7.9 V MAXIMU.

📥 Download Datasheet

Datasheet preview – UC1843A-EP

Datasheet Details

Part number UC1843A-EP
Manufacturer Texas Instruments
File Size 1.11 MB
Description Current-Mode PWM Controllers
Datasheet download datasheet UC1843A-EP Datasheet
Additional preview pages of the UC1843A-EP datasheet.

📁 Similar Datasheet

  • UC1843A - Current Mode PWM Controller (Unitrode)
  • UC1843A - CURRENT MODE PWM CONTROLLER (LINFINITY)
  • UC1843B-D - HIGH PERFORMANCE CURRENT MODE PWM CONTROLLER (UTC)
  • UC1840 - PWM CONTROLLER (STMicroelectronics)
  • UC1841 - Programmable Off-Line PWM Controller (Unitrode)
  • UC1842A - Current Mode PWM Controller (Unitrode)
  • UC1842A - CURRENT MODE PWM CONTROLLER (LINFINITY)
  • UC1842B-D - HIGH PERFORMANCE CURRENT MODE PWM CONTROLLER (UTC)
  • UC1844A - Current Mode PWM Controller (Unitrode)
  • UC1844A - CURRENT MODE PWM CONTROLLER (LINFINITY)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

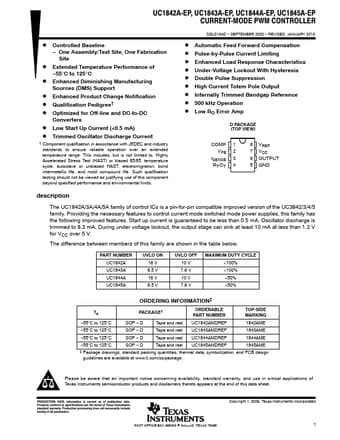

UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP CURRENT-MODE PWM CONTROLLER D Controlled Baseline − One Assembly/Test Site, One Fabrication Site D Extended Temperature Performance of −55°C to 125°C D Enhanced Diminishing Manufacturing Sources (DMS) Support D Enhanced Product Change Notification D Qualification Pedigree† D Optimized for Off-line and DC-to-DC Converters D Low Start Up Current (<0.5 mA) D Trimmed Oscillator Discharge Current † Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life.
