UCC27511A - Single-Channel High-Speed Low-Side Gate Driver

Description

The UCC27511A device is a compact gate driver that offers superior replacement of NPN and PNP discrete driver (buffer circuit) solutions.

The UCC27511Asingle-channel low-side, high-speed gate driver rated for MOSFETs, IGBTs, and emerging wide-bandgap power devices such as GaN.

Features

  • 1 Input Pins Capable of Withstanding.
  • 5 V Below GND pin.
  • Low-Cost Gate-Driver Device Offering Superior Replacement of NPN and PNP Discrete Solutions.
  • Strong Sink Current Offers Enhanced Immunity Against Miller Turnon.
  • Split Output Configuration (Allows Easy and Independent Adjustment of Turnon and Turnoff Speeds).
  • Fast Propagation Delays (13-ns typical).
  • Fast Rise and Fall Times (9-ns and 7-ns typical).
  • 4.5 to 18-V Single Sup.

📥 Download Datasheet

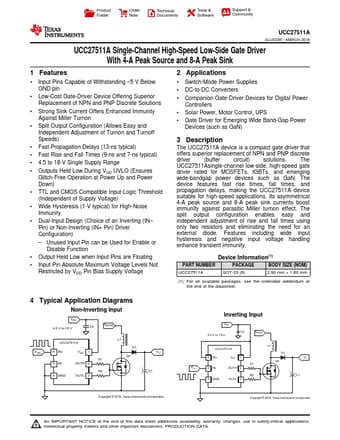

Datasheet preview – UCC27511A
