UCC28950 - Green Phase-Shifted Full-Bridge Controller

Description

The UCC28950 enhanced phase-shifted controller builds upon Texas Instrument’s industry standard UCx895 phase-shifted controller family with enhancements that offer best in class efficiency in today’s high performance power systems.

Features

  • 1 Enhanced Wide Range Resonant Zero Voltage Switching (ZVS) Capability.
  • Direct Synchronous Rectifier (SR) Control.
  • Light-Load Efficiency Management Including.
  • Burst Mode Operation.
  • Discontinuous Conduction Mode (DCM), Dynamic SR On and Off Control with Programmable Threshold.
  • Programmable Adaptive Delay.
  • Average or Peak Current Mode Control With Programmable Slope Compensation and Voltage Mode Control.
  • Naturally Handles Pre-.

📥 Download Datasheet

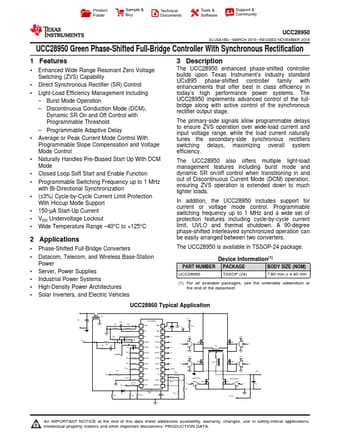

Datasheet preview – UCC28950

Datasheet Details

Part number UCC28950
Manufacturer Texas Instruments
File Size 2.73 MB
Description Green Phase-Shifted Full-Bridge Controller
Datasheet download datasheet UCC28950 Datasheet
Additional preview pages of the UCC28950 datasheet.
