UCC38084 Datasheet, Controllers, Texas Instruments

UCC38084 Features

• Controllers D Programmable Slope Compensation D Internal Soft-Start on the UCC38083/4 D Cycle-by-Cycle Current Limiting D Low Start-Up Current of 120 µA and 1.5 mA Typical Run Current D Single Exte

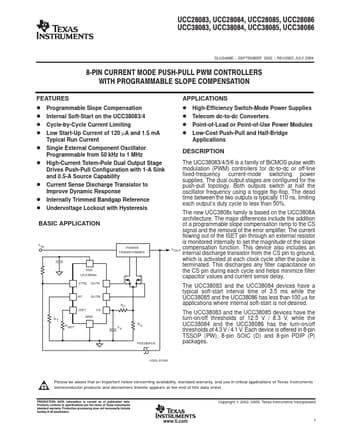

PDF File Details

Part number:

UCC38084

Manufacturer:

Texas Instruments ↗

File Size:

1.48MB

Download:

📄 Datasheet

Description:

8-pin current mode push-pull pwm controllers. The UCC38083/4/5/6 is a family of BiCMOS pulse width modulation (PWM) controllers for dc-to-dc or off-line fixed-frequency current-m

UCC38084 Application

• Applications D High-Efficiency Switch-Mode Power Supplies D Telecom dc-to-dc Converters D Point-of-Load or Point-of-Use Power Modules D Low-Cost Pus
