ULN2003AI, ULN2002A Datasheet - Texas Instruments

ULN2003AI, ULN2002A, High-Current Darlington Transistor Arrays

ULN2002A, ULN2003A, ULN2003AI ULQ2003A, ULN2004A, ULQ2004A SLRS027R * DECEMBER 1976 * REVISED FEBRUARY 2024 ULN200x, ULQ200x High-Volt.
The ULx200xA devices are high-voltage, high-current Darlington transistor arrays.

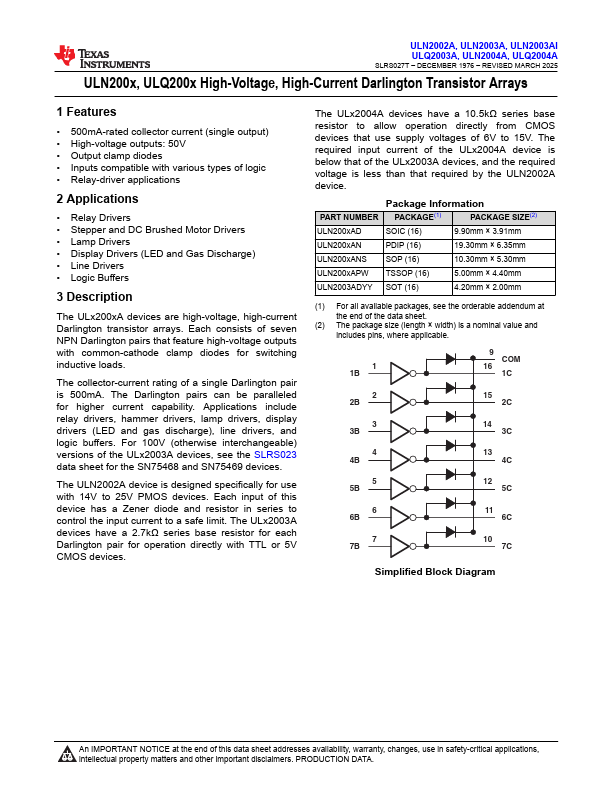

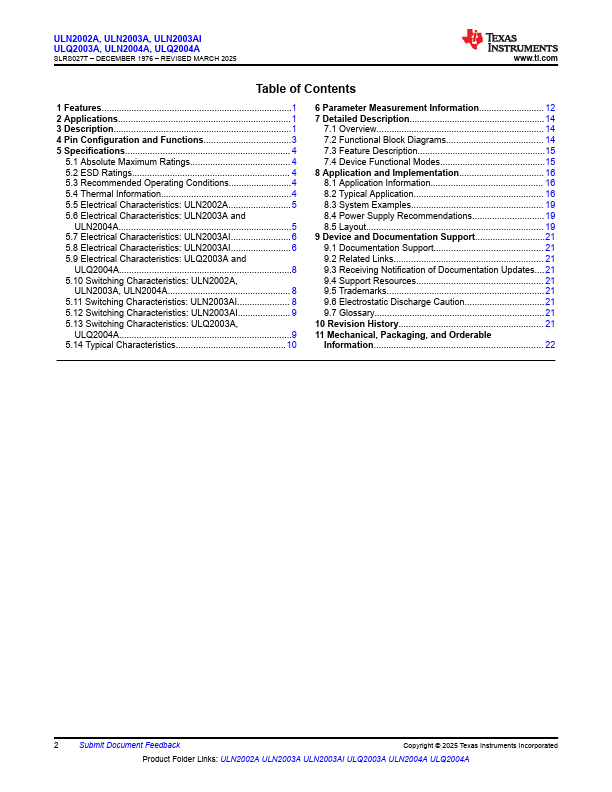

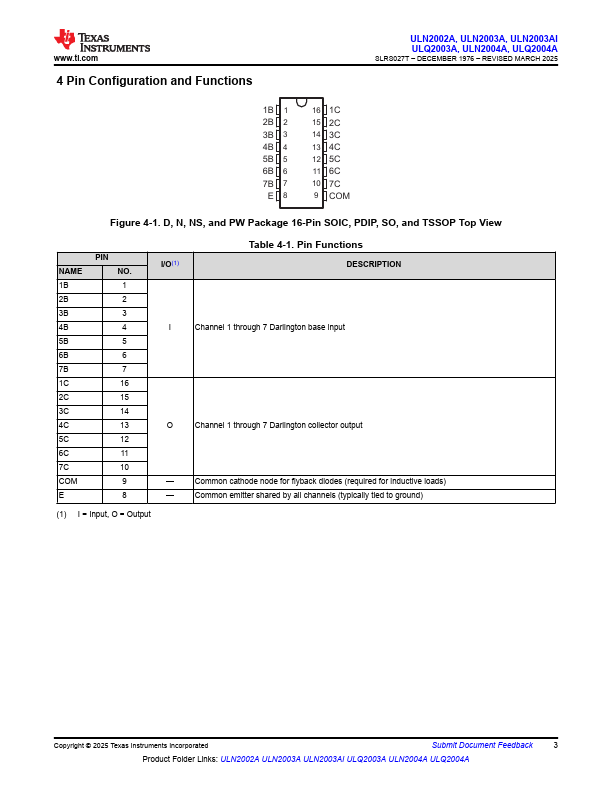

datasheet Preview Page 1 from Datasheet4u.com

ULN2002A-etcTI.pdf

ULN2003AI Datasheet Preview — This datasheet PDF includes multiple part numbers: ULN2003AI, ULN2002A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ULN2003AI, ULN2002A

Manufacturer:

Texas Instruments ↗

File Size:

1.51 MB

Description:

High-Current Darlington Transistor Arrays

Note:

This datasheet PDF includes multiple part numbers: ULN2003AI, ULN2002A.
Please refer to the document for exact specifications by model.

Features

* 500-mA-Rated Collector Current (Single Output)
* High-Voltage Outputs: 50 V
* Output Clamp Diodes
* Inputs Compatible With Various Types of Logic

Applications

* 2 Applications
* Relay Drivers
* Stepper and DC Brushed Motor Drivers
* Lamp Drivers
* Display Drivers (LED and Gas Discharge)
* Line Drivers
