bq24715J

2-3 Cell NVDC-1 Battery Charger Controller

bq24715J Features

* 1

* 6-24V Input SMBus NVDC-1 2-3S Battery Charger Controller

* System Instant-on Operation with No Battery or Deeply Discharged Battery

* Ultra-Fast Transient Response of 100 µs

* Ultra-Low Quiescent Current of 500 µA and High PFM Light Load Efficiency 80% at 20mA loa

bq24715J General Description

The bq24715J is a NVDC-1 synchronous battery charge controller with low quiescent current, high light load efficiency for 2S or 3S Li-ion battery charging applications, offering low component count. The power path management allows the system to be regulated at battery voltage but does not drop belo.

bq24715J Datasheet (716.88 KB)

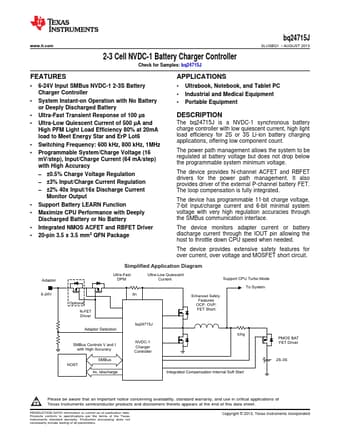

Preview of bq24715J PDF

Datasheet Details

Part number:

bq24715J

Manufacturer:

Texas Instruments ↗

File Size:

716.88 KB

Description:

2-3 cell nvdc-1 battery charger controller.
