bq50002

Low-Cost 5-V Wireless Power Transmitter Analog Front-End

bq50002 Features

* 1 5-V Transmitter AFE Compatible with Wireless Power Consortium (WPC) V1.2 A11 Low Power Transmitter Specification

* Designed to be used with bq500511 WPC Controller

* Suitable for WPC and Proprietary 5-V Wireless Power Transmitters

* Supports 5 W on the receiver out

bq50002 General Description

The bq50002 is a highly integrated wireless power transmitter analog front end that contains all of the analog components required to implement a WPC compliant 5-V transmitter. bq50002 integrates a fullbridge power driver with MOSFETs, variablefrequency oscillator, two-channel communication demodula.

bq50002 Datasheet (1.63 MB)

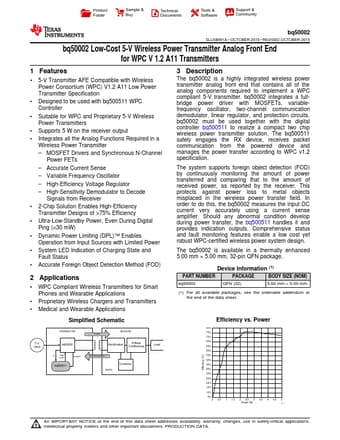

Preview of bq50002 PDF

Datasheet Details

Part number:

bq50002

Manufacturer:

Texas Instruments ↗

File Size:

1.63 MB

Description:

Low-cost 5-v wireless power transmitter analog front-end.
