uA723CD, uA723 - PRECISION VOLTAGE REGULATORS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: uA723CD, uA723. Please refer to the document for exact specifications by model.

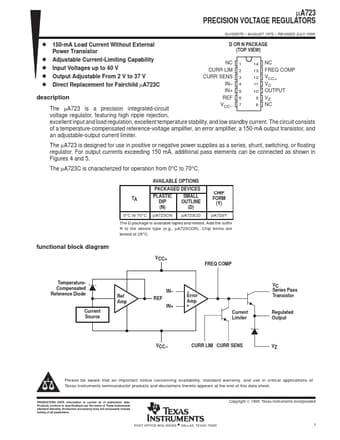

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number uA723CD, uA723
Manufacturer Texas Instruments ↗
File Size 1.00 MB
Description PRECISION VOLTAGE REGULATORS
Datasheet download datasheet uA723-etcTI.pdf
Note This datasheet PDF includes multiple part numbers: uA723CD, uA723.
Please refer to the document for exact specifications by model.

uA723CD Product details

Description

REF 6 9 VZ The µA723 is a precision integrated-circuit VCC 7 8 NC voltage regulator, featuring high ripple rejection, excellent input and load regulation, excellent temperature stability, and low standby current.The circuit consists of a temperature-compensated reference-voltage amplifier, an error amplifier, a 150-mA output transistor, and an adjustable-output current limiter.The µA723 is designed for use in positive or negative power supplies as a series, shunt, switching,
