iT2025J Power Amplifier

iT2025J Description

30 kHz to 18 GHz High-Gain Power Amplifier .
The iT2025J is a RoHS-6-compliant packaged broadband GaAs MMIC traveling wave amplifier designed for medium output power applications where low-freque.

iT2025J Features

* www. DataSheet4U. com Device Diagram Both gain stages and their respective RF and DC connections are shown at right. The internal coupling capacitor value between the cascaded gain stages is 0.1 µF. VD1 and VD2 are applied to the gain stages through on-chip resistors. VCTRL1 VD1 VCTRL2 VD2 IN Ga

iT2025J Applications

* where low-frequency extension capabilities are also required. The iT2025J provides saturated output power greater than 25 dBm up to 8 GHz, greater than 23 dBm up to 16 GHz, and greater than 20 dBm at 18 GHz. Average gain is greater than 25 dB. DC power consumption as low as 2.4 W. Input/output ports

📥 Download Datasheet

Preview of iT2025J PDF

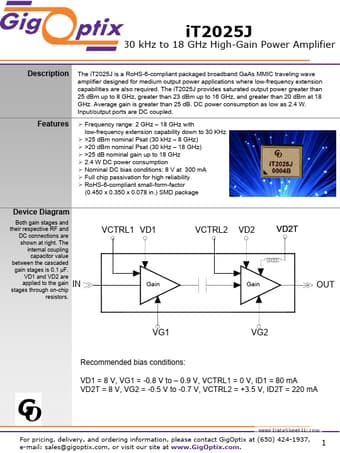

datasheet Preview Page 2 datasheet Preview Page 3
