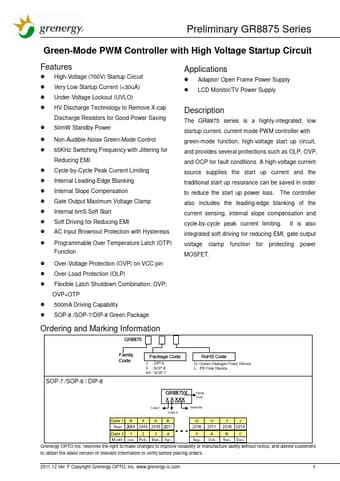

GR8875 Datasheet, Controller, grenergy

GR8875 Features

• Controller High-Voltage (700V) Startup Circuit Very Low Startup Current (<30uA) Under-Voltage Lockout (UVLO) HV Discharge Technology to Remove X-cap Discharge Resistors for Good Power Saving 50mW

PDF File Details

Part number:

GR8875

Manufacturer:

grenergy

File Size:

841.35kb

Download:

📄 Datasheet

Description:

Green-mode pwm controller. The GR8875 series is a highly-integrated, low startup current, current mode PWM controller with green-mode function, high-voltage sta

GR8875 Application

• Applications Adaptor/ Open Frame Power Supply LCD Monitor/TV Power Supply Description The GR8875 series is a highly-integrated, low startup current
