GR8875NL - Green-Mode PWM Controller

This page provides the datasheet information for the GR8875NL, a member of the GR8875N Green-Mode PWM Controller family.

Datasheet Summary

Description

The GR8875N series is a highly-integrated, low startup current, current mode PWM controller with green-mode function, high-voltage start up circuit, and provides several protections such as OLP, OVP, and OCP for fault conditions.

Features

High-Voltage (700V) Startup Circuit Very Low Startup Current (.

grenergy

📥 Download Datasheet

Datasheet Details

Part number	GR8875NL
Manufacturer	grenergy
File Size	850.22 KB
Description	Green-Mode PWM Controller
Datasheet	GR8875NL Datasheet

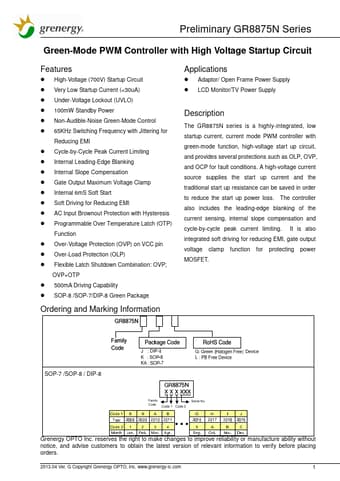

Additional preview pages of the GR8875NL datasheet.

📁 Similar Datasheet

GR881 - NON Voltage Memory (Greenwich Instruments)

Other Datasheets by grenergy

GR8875N - Green-Mode PWM Controller
GR8875NH - Green-Mode PWM Controller
GR8875NR - Green-Mode PWM Controller
GR8875 - Green-Mode PWM Controller
GR8874 - Green Mode PWM Controller
GR8876 - Green-Mode PWM Controller
GR8876A - Green-Mode PWM Controller
GR8818A - Primary Feedback PWM Controller

Full PDF Text Transcription

Click to expand full text

Preliminary GR8875N Series Green-Mode PWM Controller with High Voltage Startup Circuit Features High-Voltage (700V) Startup Circuit Very Low Startup Current (<30uA) Under-Voltage Lockout (UVLO) 100mW Standby Power Non-Audible-Noise Green-Mode Control 65KHz Switching Frequency with Jittering for Reducing EMI Cycle-by-Cycle Peak Current Limiting Internal Leading-Edge Blanking Internal Slope Compensation Gate Output Maximum Voltage Clamp Internal 6mS Soft Start Soft Driving for Reducing EMI AC Input Brownout Protection with Hysteresis Programmable Over Temperature Latch (OTP) Function Over-Voltage Protection (OVP) on VCC pin Over-Load Protection (OLP) Flexible Latch Shutdown Combination: OVP; OVP+OTP 500mA Driving Capability SOP-8 /SOP-7/DIP-8 Green Package Ordering and Marking Information
