M1806L Datasheet - iModule

buck-type magnetic integrated power SoC

M1806L General Description

BST ，。 。 。， 。 。 VCC AGND SW ，。 Pad Rev. 1.0 3 iModule All Rights Reserved www.iModuletek.com M1806L 18V， 6A， EN 3.3M VCC SS 3.3V LDO ISS AGND 10nF FB BUF Bias&Voltage Reference EA Ramp COMP PWM PG On Timer 90% VREF Rising 80% VREF Falling 120% VREF Rising 110% VREF F.

M1806L Datasheet (1.85 MB)

Preview of M1806L PDF

Datasheet Details

Part number:

M1806L

Manufacturer:

iModule

File Size:

1.85 MB

Description:

Buck-type magnetic integrated power soc.
3V~18V 0.6V~0.9VIN 6A ESR 1.4MHz / LGA-19 (3mm×3.1mm×1.7mm).

📁 Related Datasheet

M180E1-L01 LCD MODULE (CHI MEI)

M180E1-L03 LCD MODULE (CHI MEI)

M180E2-L01 LCD MODULE (CHI MEI)

M180E2-L03 LCD MODULE (CHI MEI)

M180UFG HIGH VOLTAGE RECTIFIER (VMI)

M18110 8 LEDS FLASH (ETC)

M185B1-C01 TFT LCD (CHIMEI)

M185B1-CZ1 LCD MODULE (CHI MEI)

M185B1-L01 TFT LCD (Chi Mei)

M185B1-L02 TFT LCD (Chi Mei)

TAGS

M1806L buck-type magnetic integrated power SoC iModule

Image Gallery

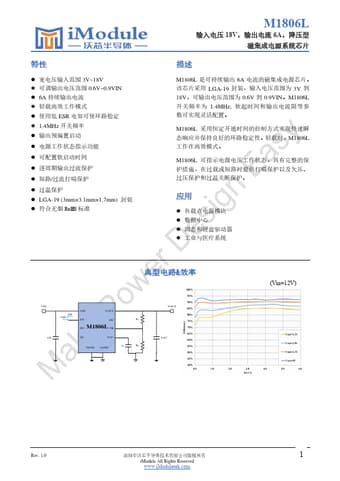

M1806L Datasheet Preview Page 2 M1806L Datasheet Preview Page 3
