iW3609 - AC/DC Digital Power Controller

iW3609 Description

iW3609 Product Brief AC/DC Digital Power Controller for Single-Stage High Power Factor Dimmable LED Drivers 1.0 .

iW3609 Features

* Isolated/non-isolated offline120VAC/230VAC LED driver up to 15W output power
* Wide line frequency range (from 45Hz to 66Hz)
* Meets IEC61000-3-2 Current Harmonic requirement
* Total harmonic distortion < 20% with PF > 0.92
* Wide dimmer compatibility x

📥 Download Datasheet

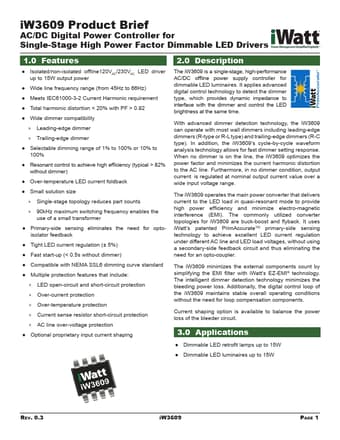

Preview of iW3609 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
iW3609
Manufacturer
iWatt
File Size
278.19 KB
Datasheet
iW3609-iWatt.pdf
Description
AC/DC Digital Power Controller
