PEH4010 Datasheet - imperix

PEH4010 Full bridge building block

These modules are designed for the low-voltage laboratory implementation of multilevel converters. Versatile power interfaces allow to easily configure the modules for both half- or full-bridge operation. The design is tailored for 19’’ rack integration with simple interconnections and direct connec.

PEH4010 Features

* AND SPECIFICATIONS

* 10 A / 400 V maximum ratings, limited by losses

* 600 V / 50 A IGBTs

* 230 A maximum current (1 ms)

* 2 x 20 W TDP enveloppe

* Isolated TO247 transistor packages

* 0-1.35 mF / 4

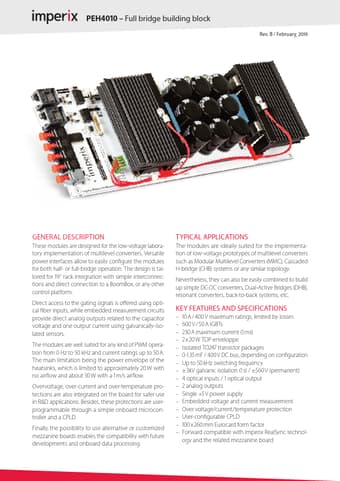

PEH4010-imperix.pdf

PEH4010 Datasheet Preview — Preview of PEH4010 PDF

Datasheet Details

Part number:

PEH4010

Manufacturer:

imperix

File Size:

3.83 MB

Description:

Full bridge building block.
