3100400 HYBRID COUPLER

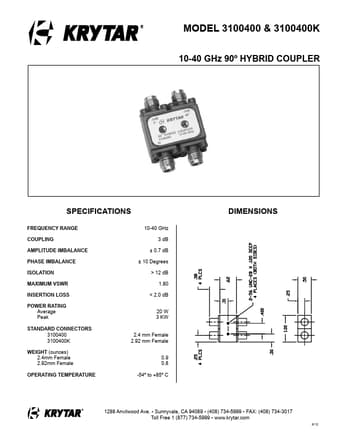

 MODEL 3100400 & 3100400K 10-40 GHz 90º HYBRID COUPLER SPECIFICATIONS FREQUENCY RANGE COUPLING AMPLITUDE IMBALANCE PHASE IMBALANCE ISOLATION MAXIMUM VSWR INSERTION LOSS POWER RATING Average Peak STANDARD CONNECTORS 3100400 3100400K WEIGHT (ounces) 2.4mm Female 2.92mm Female OPERATING TEMPERATURE 10-40 GHz 3 dB ± 0.7 dB ± 10 Degrees > 12 dB 1.80 < 2.0 dB 20 W 3 KW 2.4 mm Female 2.92 mm Female 0.9 0.8 -54º to +85º C http://www.DataSheet4U.net/ DIMENSIONS  1288 Anvi.

3100400 Datasheet (239.20 KB)

3100400 Datasheet Preview — Preview of 3100400 PDF

Datasheet Details

Part number:

3100400

Manufacturer:

krytar

File Size:

239.20 KB

Description:

Hybrid coupler.
