MT2103-G - Standar T-1 LED Lamps

Features

  • Excellent on/off contrasts.
  • Solid state reliability.
  • Choice of diffused or color clear lens.
  • Other colors/materials available.
  • Can be packaged on tape in a reel or in a box.

📥 Download Datasheet

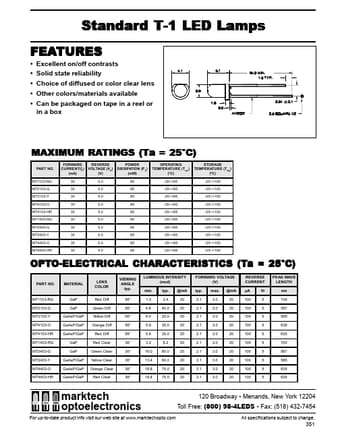

Datasheet preview – MT2103-G

Datasheet Details

Part number MT2103-G
Manufacturer marktech optoelectronics
File Size 75.49 KB
Description Standar T-1 LED Lamps
Datasheet download datasheet MT2103-G Datasheet
Additional preview pages of the MT2103-G datasheet.

📁 Similar Datasheet

Other Datasheets by marktech optoelectronics

Full PDF Text Transcription

Click to expand full text
Standard T-1 LED Lamps FEATURES • Excellent on/off contrasts • Solid state reliability • Choice of diffused or color clear lens • Other colors/materials available • Can be packaged on tape in a reel or in a box MAXIMUM RATINGS (Ta = 25°C) PART NO. MT1103-RG MT2103-G MT3103-Y MT4103-O MT4103-HR MT1403-RG MT2403-G MT3403-Y MT4403-O MT4403-HR FORWARD CURRENT(IF) (mA) REVERSE VOLTAGE (VR) (V) POWER DISSIPATION (PD) (mW) OPERATING TEMPERATURE (Topr) (°C) STORAGE TEMPERATURE (Tstg) (ºC) 30 5.0 85 -25~+85 -25~+100 30 5.0 85 -25~+85 -25~+100 30 5.0 85 -25~+85 -25~+100 30 5.0 85 -25~+85 -25~+100 30 5.0 85 -25~+85 -25~+100 30 5.0 85 -25~+85 -25~+100 30 5.0 85 -25~+85 -25~+100 30 5.0 85 -25~+85 -25~+100 30 5.0 85 -25~+85 -25~+100 30 5.
