MC1310 - (MC1310 / MC1311) High Speed MegaPixel CMOS Camera

Datasheet Summary

Description

All brand and product names which appear in this document may be trademarks or registered trademarks of the corresponding companies.

We reserved the right to change specification without notice.

©Mikrotron GmbH, 2005/06/02; Rev.

📥 Download Datasheet

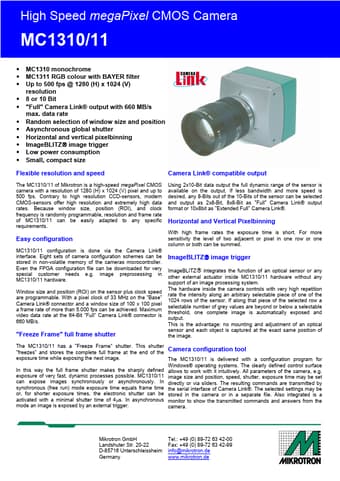

Datasheet preview – MC1310

Datasheet Details

Part number MC1310
Manufacturer mikrotron
File Size 1.05 MB
Description (MC1310 / MC1311) High Speed MegaPixel CMOS Camera
Datasheet download datasheet MC1310 Datasheet
Additional preview pages of the MC1310 datasheet.

📁 Similar Datasheet

  • MC1310 - FM STEREO DEMODULATOR (Motorola)
  • MC1310 - (MC1306 - MC1330) Mount (Lambda)
  • MC13104 - (MC13104 / MC13105) 1 Ghz Receiver LNA/Mixer/VCO (Freescale Semiconductor)
  • MC13105 - (MC13104 / MC13105) 1 Ghz Receiver LNA/Mixer/VCO (Freescale Semiconductor)
  • MC13109 - Universal Cordless Telephone Subsystem IC (Motorola)
  • MC13109A - Universal Cordless Telephone Subsystem IC (Motorola)
  • MC13110A - UNIVERSAL NARROWBAND FM RECEIVER INTEGRATED CIRCUIT (Motorola)
  • MC13110B - UNIVERSAL NARROWBAND FM RECEIVER INTEGRATED CIRCUIT (Motorola)
  • MC13111A - UNIVERSAL NARROWBAND FM RECEIVER INTEGRATED CIRCUIT (Motorola)
  • MC13111B - UNIVERSAL NARROWBAND FM RECEIVER INTEGRATED CIRCUIT (Motorola)
Other Datasheets by mikrotron
  • MC1311 - (MC1310 / MC1311) High Speed MegaPixel CMOS Camera
  • MC1302 - High Speed megaPixel CMOS Camera
  • MC1303 - High Speed megaPixel CMOS Camera

Full PDF Text Transcription

Click to expand full text
High Speed megaPixel CMOS Camera MC1310/11 • • • • • • • • • • • MC1310 monochrome MC1311 RGB colour with BAYER filter Up to 500 fps @ 1280 (H) x 1024 (V) resolution 8 or 10 Bit "Full" Camera Link® output with 660 MB/s max. data rate Random selection of window size and position Asynchronous global shutter Horizontal and vertical pixelbinning ImageBLITZ® image trigger Low power consumption Small, compact size Camera Link® compatible output Using 2x10-Bit data output the full dynamic range of the sensor is available on the output. If less bandwidth and more speed is desired, any 8-Bits out of the 10-Bits of the sensor can be selected and output as 2x8-Bit, 8x8-Bit as "Full" Camera Link® output format or 10x8bit as "Extended Full" Camera Link®.
