22R334C, 22R103C, Radial Lead Inductors

www.murata-ps.com 2200R Series Radial Lead Inductors .
The 2200R Series is a general purpose range of inductors suitable for low to medium current applications.

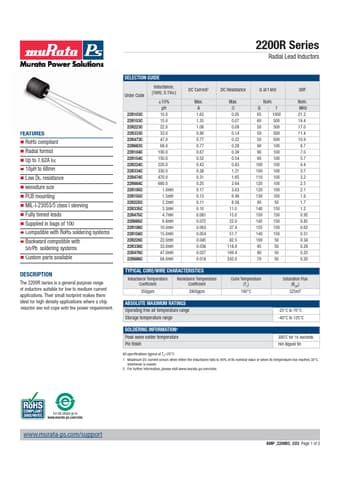

datasheet Preview Page 1 from Datasheet4u.com

22R103C-muRata.pdf

22R334C Datasheet Preview — This datasheet PDF includes multiple part numbers: 22R334C, 22R103C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

22R334C, 22R103C

Manufacturer:

muRata

File Size:

143.34 KB

Description:

Radial Lead Inductors

Note:

This datasheet PDF includes multiple part numbers: 22R334C, 22R103C.
Please refer to the document for exact specifications by model.

Features

* RoHS compliant
* Radial format
* Up to 1.62A IDC
* 10μH to 68mH
* Low DC resistance
* Miniature size
* PCB mounting
* MIL-I-23053/5 class I sleeving
* Fully tinned leads
* Supplied in bags of 100
* Compatible w

Applications

* Their small footprint makes them ideal for high density applications where a chip inductor will not cope with the power requirement. SELECTION GUIDE Order Code 22R103C 22R153C 22R223C 22R333C 22R473C 22R683C 22R104C 22R154C 22R224C 22R334C 22R474C 22R684C 22R105C 22R155C 22R225C 22R335C 22R475C 2
