MEA1D1205SC, MEA1D0505SC, 1kVDC Isolated 1W Dual Output DC-DC Converters

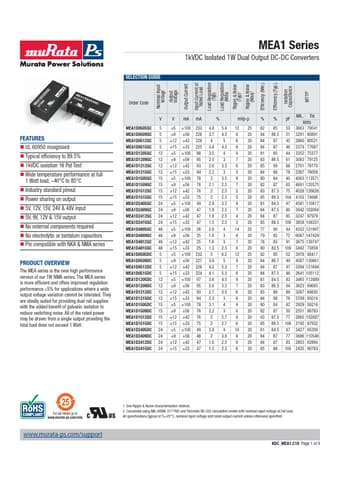

www.murata-ps.com SELECTION GUIDE MEA1 Series 1kVDC Isolated 1W Dual Output DC-DC Converters Nominal Input Voltage Output Voltage Output Current Inp.

MEA1D0505SC-muRata.pdf

MEA1D1205SC Datasheet Preview — This datasheet PDF includes multiple part numbers: MEA1D1205SC, MEA1D0505SC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MEA1D1205SC, MEA1D0505SC

Manufacturer:

muRata

File Size:

250.66 KB

Description:

1kVDC Isolated 1W Dual Output DC-DC Converters

Note:

This datasheet PDF includes multiple part numbers: MEA1D1205SC, MEA1D0505SC.
Please refer to the document for exact specifications by model.

Features

* UL 60950 recognised
* Typical efﬁciency to 89.5%
* 1kVDC isolation ‘Hi Pot Test’
* Wide temperature performance at full 1 Watt load,
* 40°C to 85°C
* Industry standard pinout
* Power sharing on output
* 5V, 12V, 15V, 24V & 48V input

Applications

* where a wide output voltage variation cannot be tolerated. They are ideally suited for providing dual rail supplies with the added beneﬁt of galvanic isolation to reduce switching noise. All of the rated power may be drawn from a single output providing the total load does not exceed 1 Watt. Order
