NMV4809DAC - 3kVDC Isolated 1W Single & Dual Output DC/DC Converters

This page provides the datasheet information for the NMV4809DAC, a member of the NMV2412SC 3kVDC Isolated 1W Single & Dual Output DC/DC Converters family.

Description

The NMV series offers single or dual output versions in the same size package as the popular NMA series.

The higher isolation is particularly useful in control type applications where the standard 1kV is not sufficient.

Features

  • RoHS compliant.
  • Efficiency to 85%.
  • Power density up to 0.85W/cm3.
  • Single or dual output.
  • UL 94V-0 package material.
  • No heatsink required.
  • Footprint from 1.17cm2.
  • Industry standard pinout.
  • Power sharing on dual output.
  • 3kVDC isolation (1 minute).
  • 24V & 48V input.
  • 5V, 9V, 12V and 15V output.
  • Internal SMD construction.
  • Fully encapsulated with toroidal magnetics.
  • No.

📥 Download Datasheet

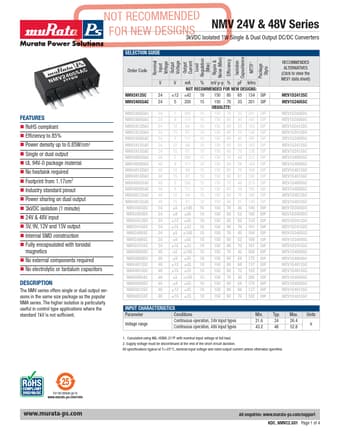

Datasheet preview – NMV4809DAC
