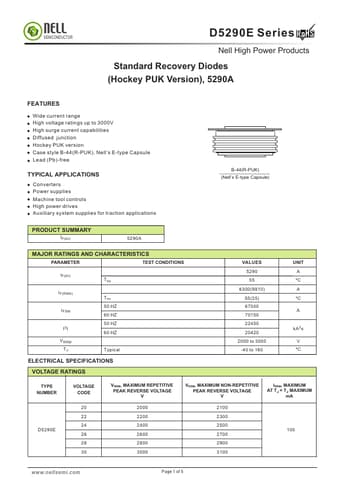

D5290E
FEATURES
Wide current range High voltage ratings up to 3000V High surge current capabilities Diffused junction Hockey PUK version Case style B-44(R-PUK), Nell’s E-type Capsule Lead (Pb)-free
TYPICAL APPLICATIONS
Converters Power supplies Machine tool controls High power drives Auxiliary system supplies for traction applications
B-44(R-PUK) (Nell’s E-type Capsule)
PRODUCT SUMMARY
IF(AV)
5290A
MAJOR RATINGS AND CHARACTERISTICS
PARAMETER
TEST CONDITIONS
IF(AV)
Ths
IF(RMS)
IFSM
I2t VRRM
Ths 50 HZ 60 HZ 50 HZ 60 HZ
Typical
ELECTRICAL SPECIFICATIONS
VOLTAGE RATINGS
VALUES 5290 55
8300(9810) 55(25) 67000 70150 22450 20420
2000 to 3000 -40 to 160
UNIT A ºC A ºC
A k A2s
V ºC
TYPE NUMBER
VOLTAGE CODE
20 22 24 26 28 30
VRRM, MAXIMUM REPETITIVE PEAK REVERSE VOLTAGE
2000 2200 2400
2600 2800
VRSM, MAXIMUM NON-REPETITIVE PEAK REVERSE VOLTAGE V l RRM, MAXIMUM AT TJ = TJ MAXIMUM m A
2100 2300 2500 2700 2900 3100
