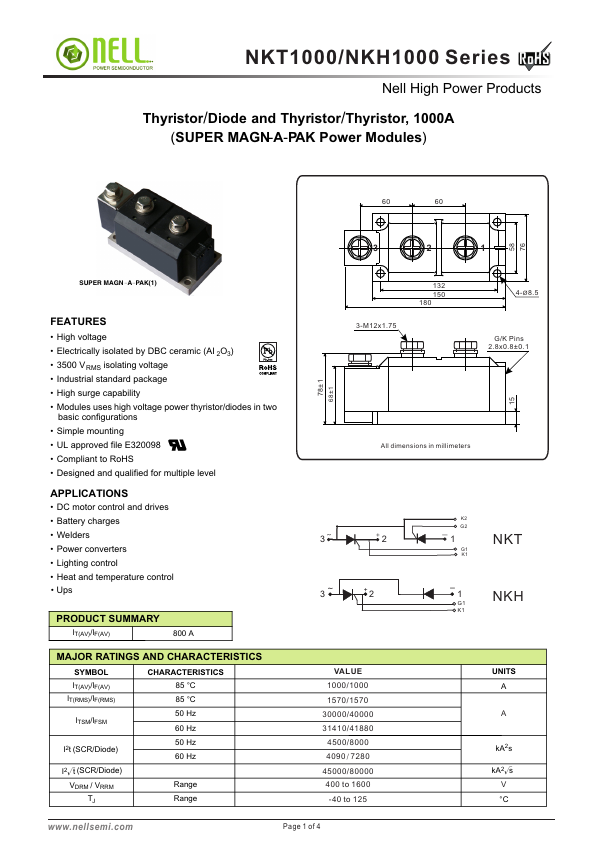

NKH1000
FEATURES
- High voltage
- Electrically isolated by DBC ceramic (AI 2O3)
- 3500 VRMS isolating voltage
- Industrial standard package
- High surge capability
- Modules uses high voltage power thyristor/diodes in two basic configurations
- Simple mounting
- UL approved file E320098
- pliant to Ro HS
- Designed and qualified for multiple level
APPLICATIONS
- DC motor control and drives
- Battery charges
- Welders
- Power converters
- Lighting control
- Heat and temperature control
- Ups
PRODUCT SUMMARY l T(AV)/l F(AV)
800 A

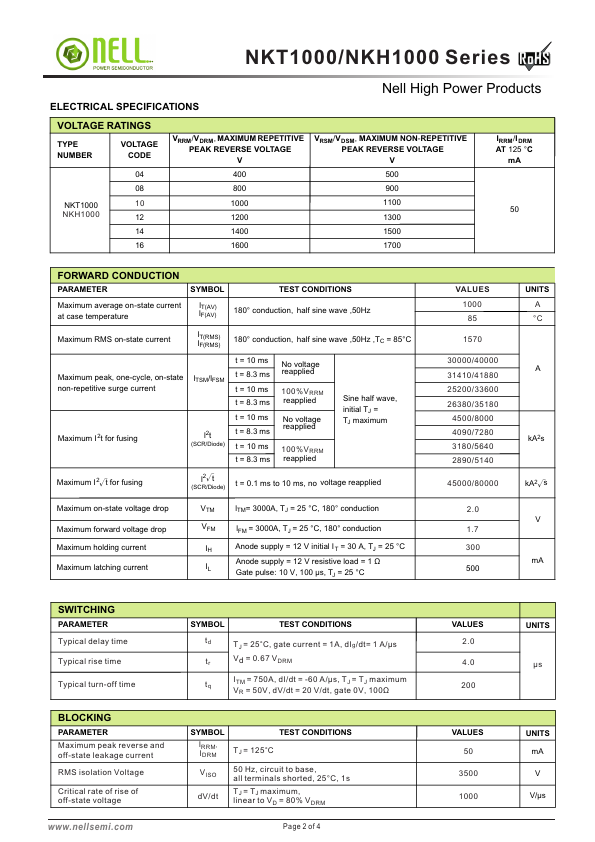

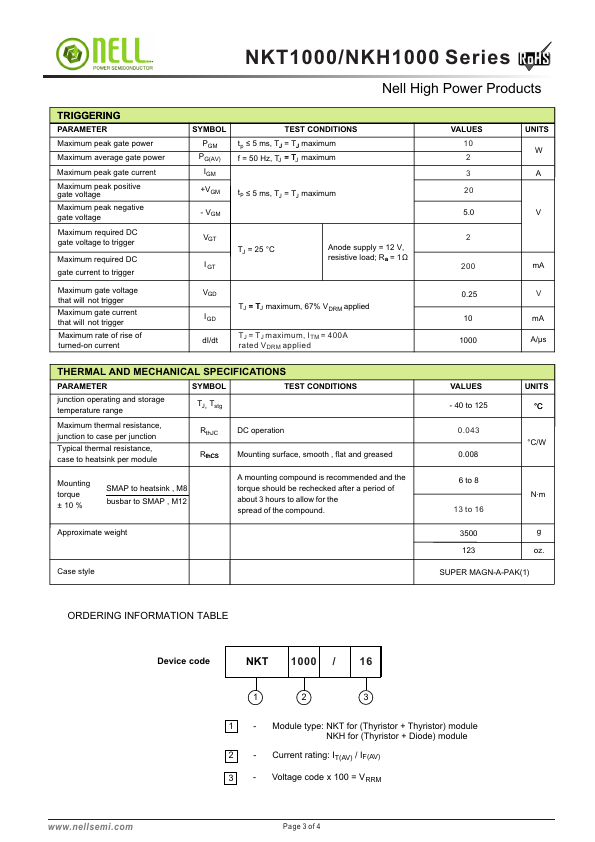

MAJOR RATINGS AND CHARACTERISTICS
SYMBOL l T(AV)/l F(AV) l T(RMS)/l F(RMS)
CHARACTERISTICS 85 °C 85 °C l TSM/l FSM
50 Hz 60 Hz
I2t (SCR/Diode)
50 Hz 60 Hz
I2√t (SCR/Diode) VDRM / VRRM TJ
Range Range
78±1 68±1
3-M12x1.75
132 150 180
4-Ø8.5
G/K Pins 2.8x0.8±0.1
All dimensions in millimeters
~
+...
