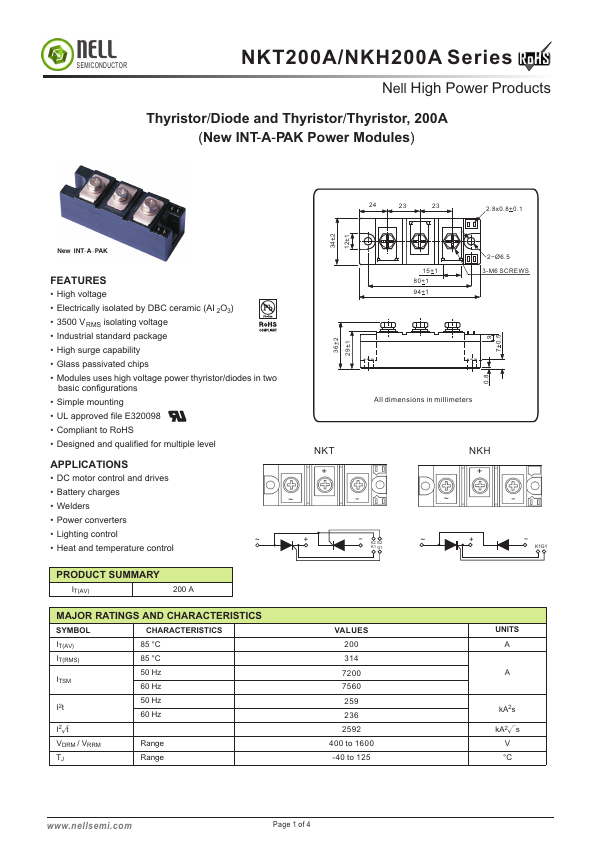

NKH200A
FEATURES
- High voltage
- Electrically isolated by DBC ceramic (AI 2O3)
- 3500 VRMS isolating voltage
- Industrial standard package
- High surge capability
- Glass passivated chips
- Modules uses high voltage power thyristor/diodes in two basic configurations
- Simple mounting
- UL approved file E320098
- pliant to Ro HS
- Designed and qualified for multiple level
APPLICATIONS
- DC motor control and drives
NKT +
- Battery charges ~
- Welders
- Power converters
- Lighting control
- Heat and temperature control
~
+
36+-2 29+-1
15+1 80+1 94+1
2- Ø6.5 3-M6 SCREWS
7+0.5
All dimensions in millimeters
- K2 G2 K1 G1
NKH +
~
- ~
+
- K1G1
PRODUCT SUMMARY
IT(AV)
200 A

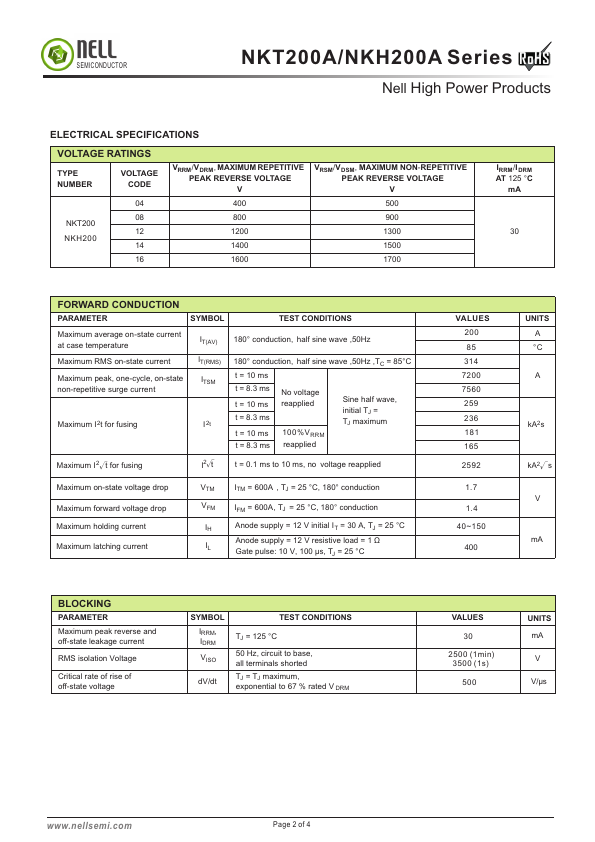

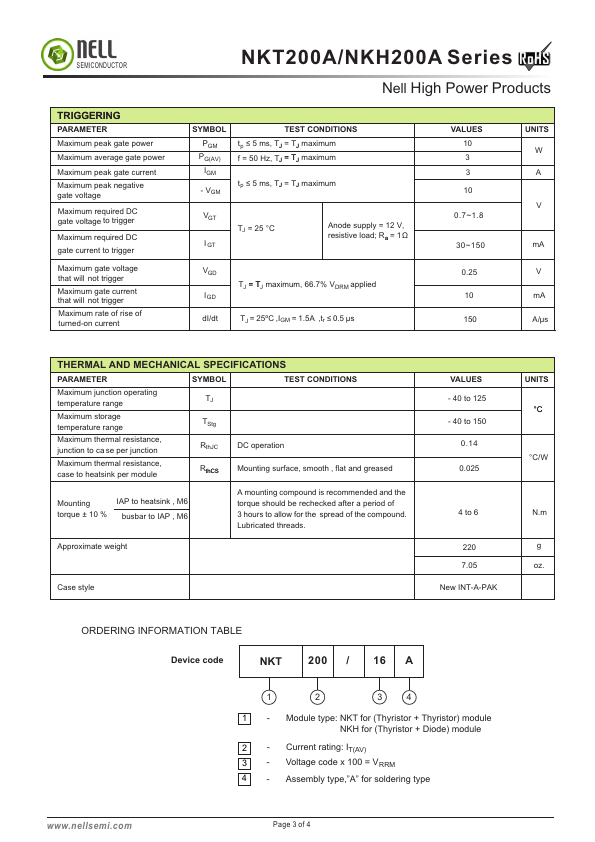

MAJOR RATINGS AND CHARACTERISTICS
SYMBOL...
