NKT200A - Thyristor/Diode and Thyristor/Thyristor

nELL

📥 Download Datasheet

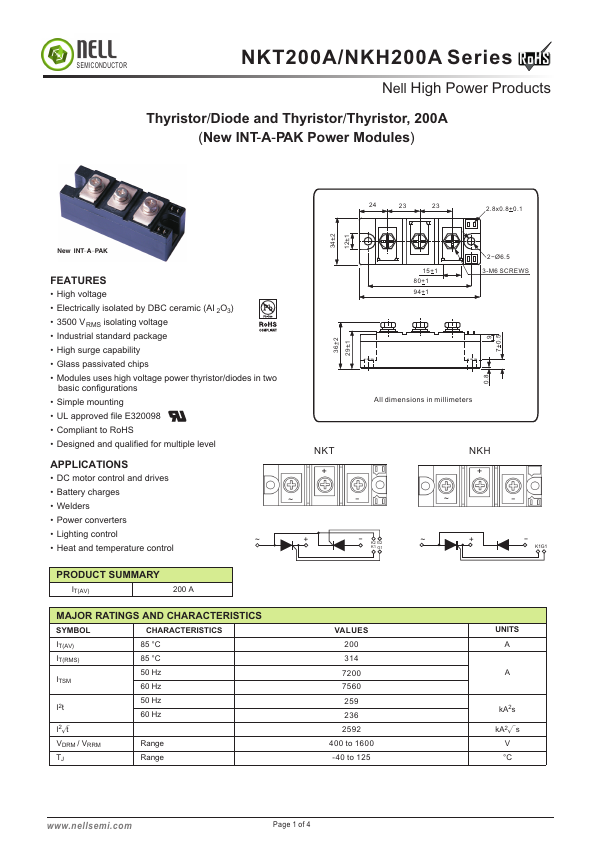

NKT200A Datasheet Preview — Preview of NKT200A PDF

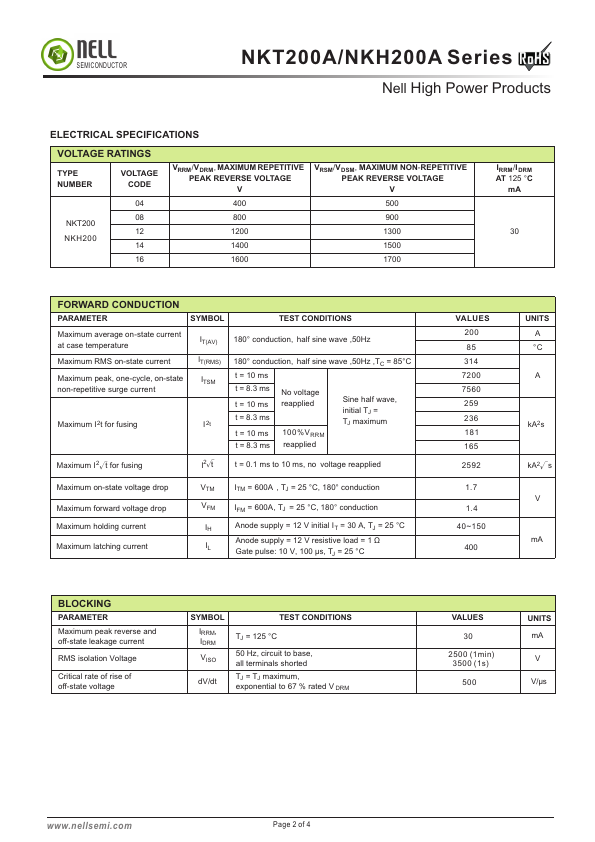

datasheet Preview Page 2

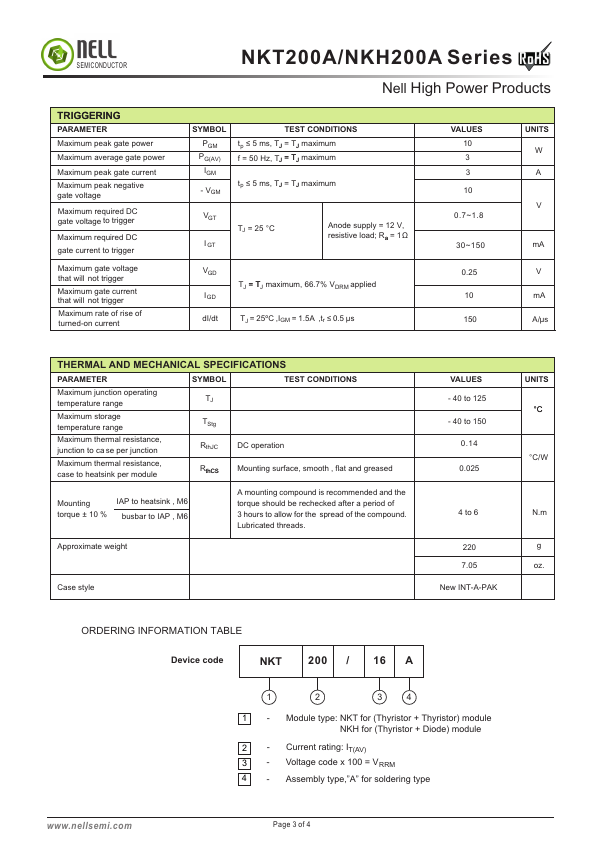

datasheet Preview Page 3

Datasheet Details

Part number	NKT200A
Manufacturer	nELL
File Size	702.50 KB
Description	Thyristor/Diode and Thyristor/Thyristor
Datasheet	NKT200A-nELL.pdf

NKT200A Product details

Features

High voltage.
Electrically isolated by DBC ceramic (AI 2O3).
3500 VRMS isolating voltage.
Industrial standard package.
High surge capability.
Glass passivated chips.
Modules uses high voltage power thyristor/diodes in two basic configurations.
Simple mounting.
UL approved file E320098.
Compliant to RoHS.
Designed and qualified for multiple level.
