2PB1219AR PNP general purpose transistor

2PB1219AR Description

2PB1219AR PNP general purpose transistor 15 May 2025 Product data sheet 1.General .
PNP transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. High current (max.

2PB1219AR Features

* High current (max. 500 mA)
* Low voltage (max. 50 V)
* Low collector-emitter saturation voltage (max. 600 mV)

2PB1219AR Applications

* General purpose switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = -10 V; IC = -150 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C

📥 Download Datasheet

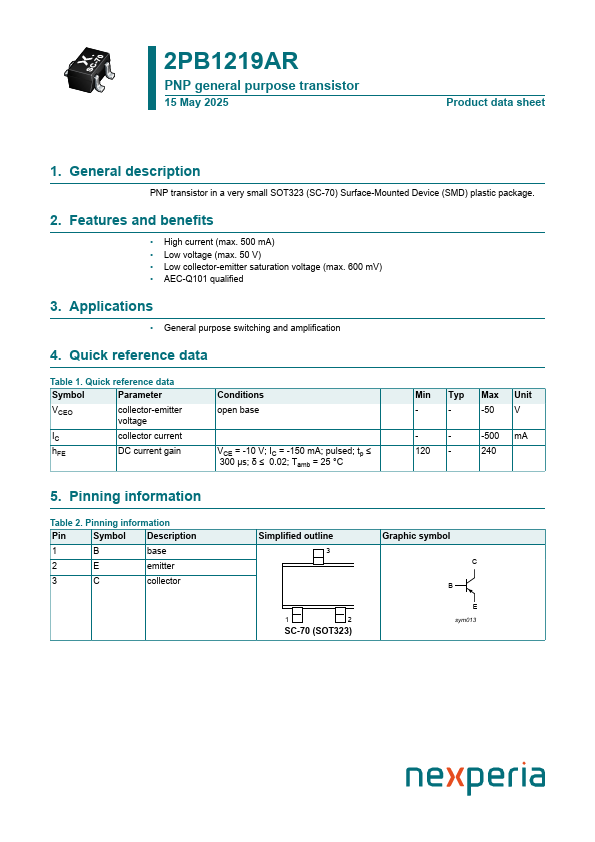

Preview of 2PB1219AR PDF

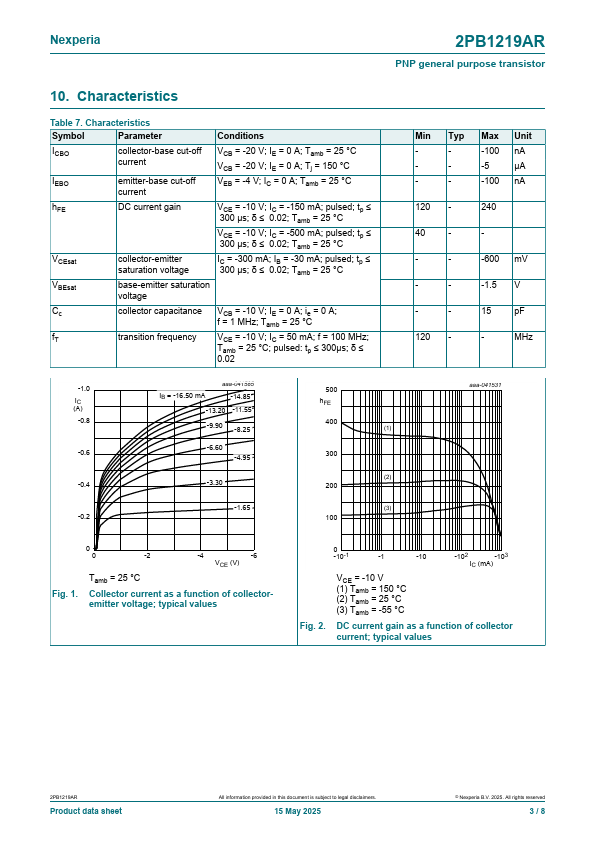

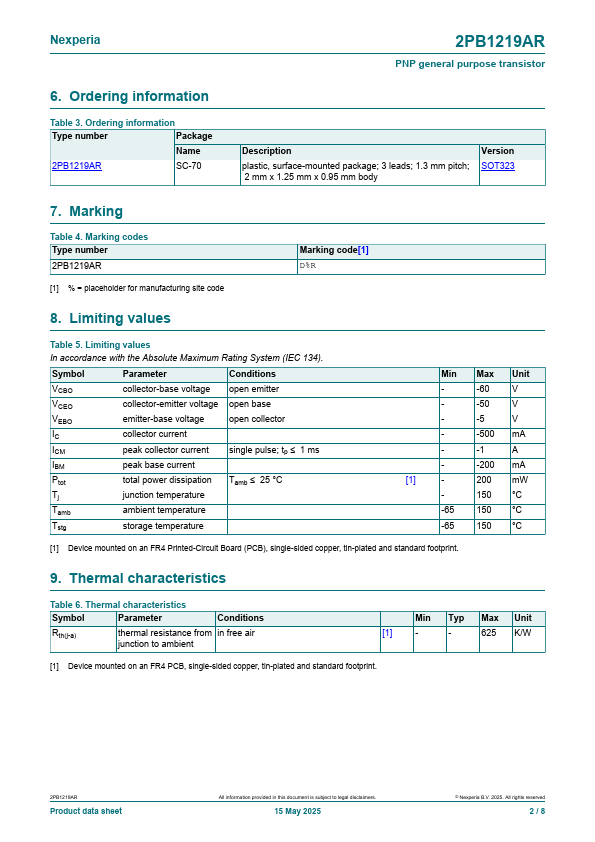

datasheet Preview Page 2 datasheet Preview Page 3
