2PD602AQL-Q, 50V 500mA NPN general-purpose transistor

2PD602AQL-Q 50 V, 500 mA NPN general-purpose transistor 10 June 2025 Product data sheet 1.General .
NPN general-purpose transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. General-purpose tran.

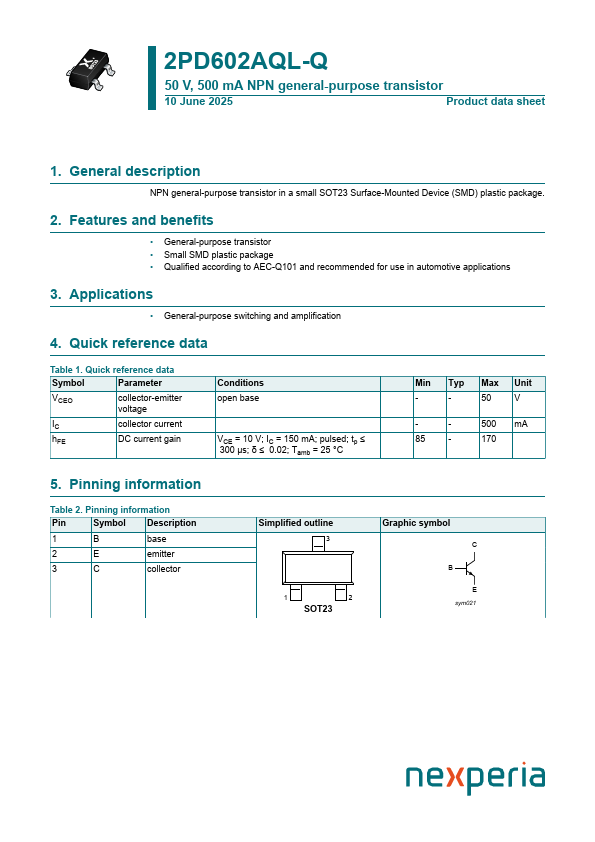

datasheet Preview Page 1 from Datasheet4u.com

2PD602AQL-Q-nexperia.pdf

2PD602AQL-Q Datasheet Preview — Preview of 2PD602AQL-Q PDF

Datasheet Details

Part number:

2PD602AQL-Q

Manufacturer:

nexperia ↗

File Size:

177.21 KB

Description:

50V 500mA NPN general-purpose transistor

Features

* General-purpose transistor
* Small SMD plastic package

Applications

* 3. Applications
* General-purpose switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = 10 V; IC = 150 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02
