74AHC00 Datasheet, Gate, nexperia

74AHC00 Features

  • Gate
  • Wide supply voltage range from 2.0 V to 5.5 V
  • Input levels:
  • For 74AHC00: CMOS level
  • For 74AHCT00: TTL level
  • Balanced propagation delay

PDF File Details

Part number:

74AHC00

Manufacturer:

nexperia ↗

File Size:

222.19kb

Download:

📄 Datasheet

Description:

Quad 2-input nand gate. The 74AHC00; 74AHCT00 are quad 2-input NAND gates. Inputs are overvoltage tolerant. This feature allows the use of these devices as t

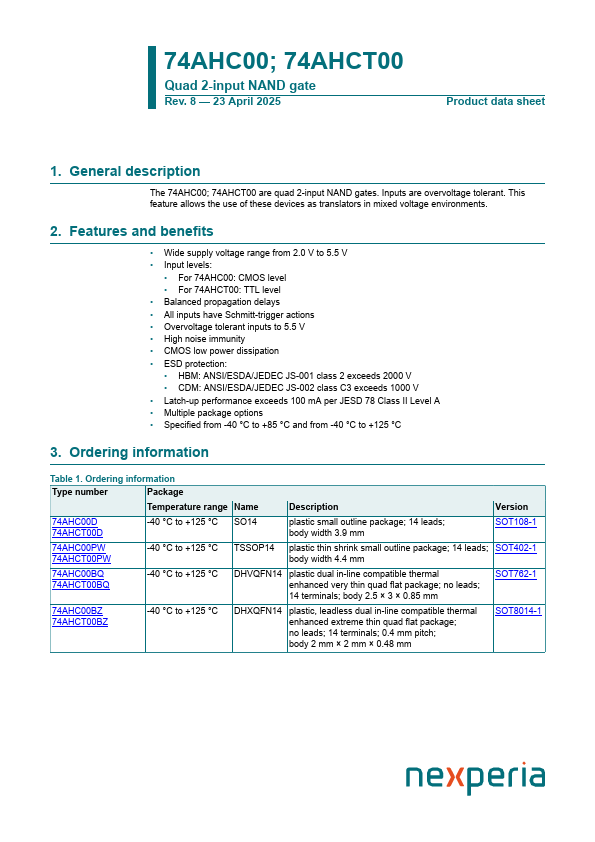

Datasheet Preview: 74AHC00 📥 Download PDF (222.19kb)

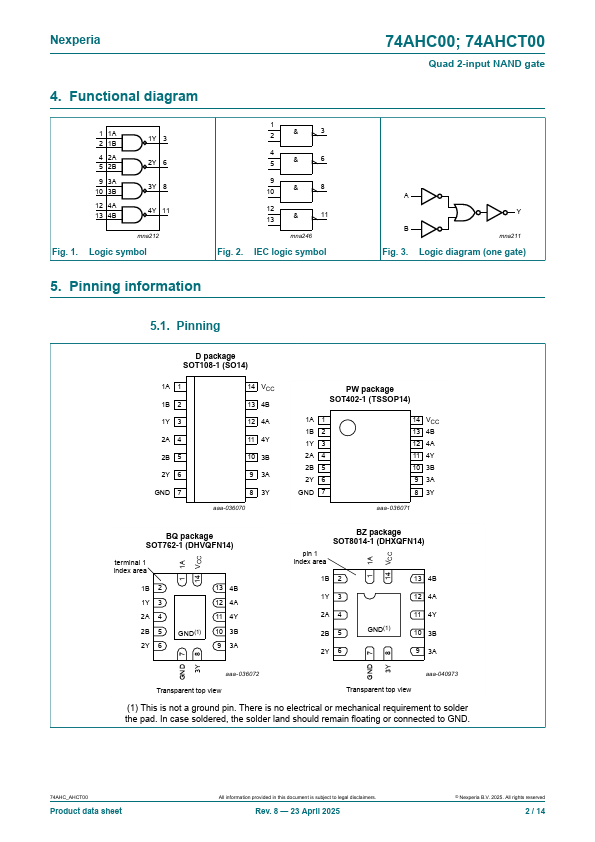

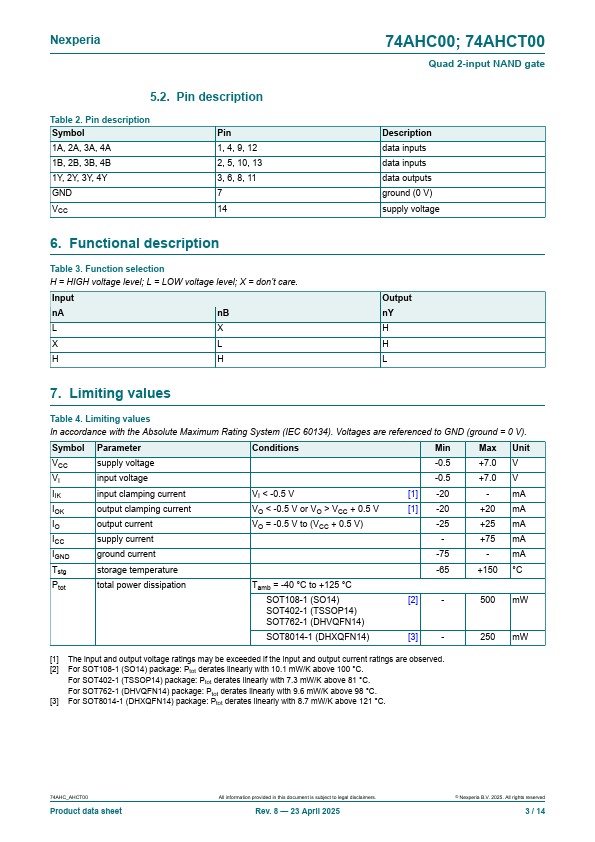

Page 2 of 74AHC00 Page 3 of 74AHC00
