74HC1G00 Datasheet, Gate, nexperia

74HC1G00 Features

  • Gate
  • Wide supply voltage range from 2.0 V to 6.0 V
  • CMOS low power dissipation
  • Input levels:
  • For 74HC1G00: CMOS level
  • For 74HCT1G00: TTL leve

PDF File Details

Part number:

74HC1G00

Manufacturer:

nexperia ↗

File Size:

202.19kb

Download:

📄 Datasheet

Description:

2-input nand gate. The 74HC1G00; 74HCT1G00 is a single 2-input NAND gate. Inputs include clamp diodes . This enables the use of current limiting resisto

Datasheet Preview: 74HC1G00 📥 Download PDF (202.19kb)

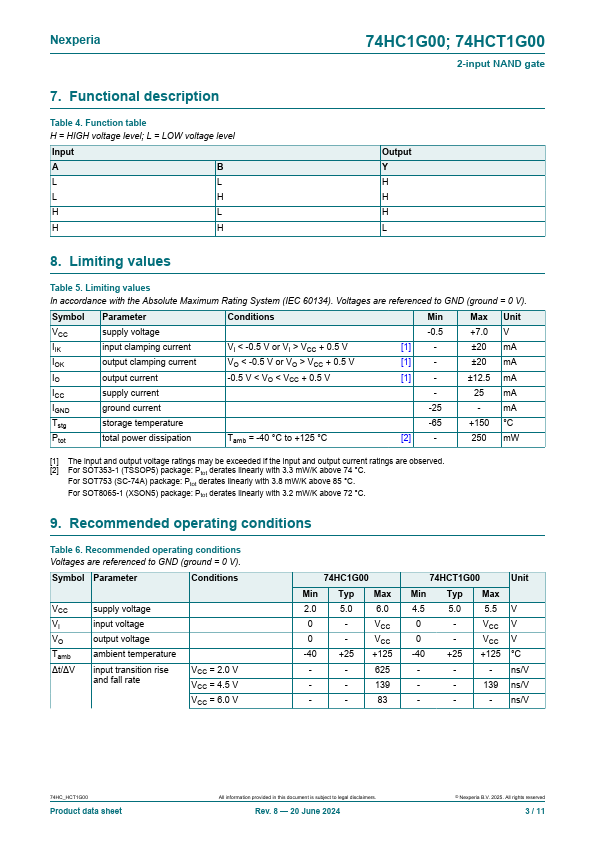

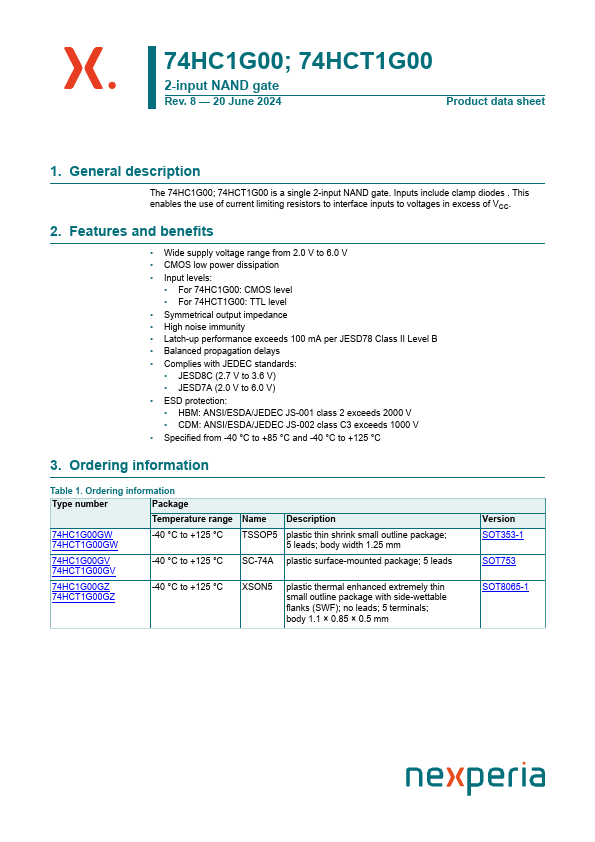

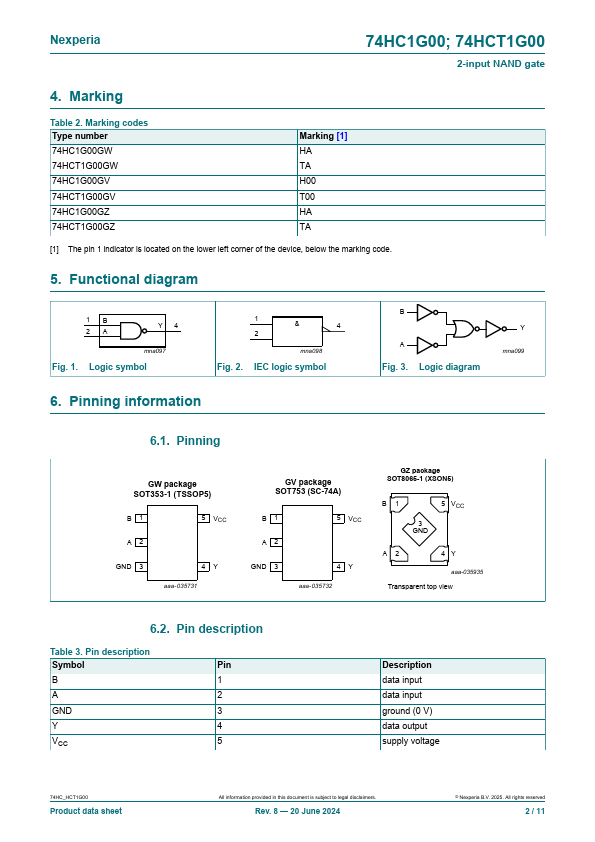

Page 2 of 74HC1G00 Page 3 of 74HC1G00
