74HC1G86 - 2-input EXCLUSIVE-OR gate

nexperia

📥 Download Datasheet

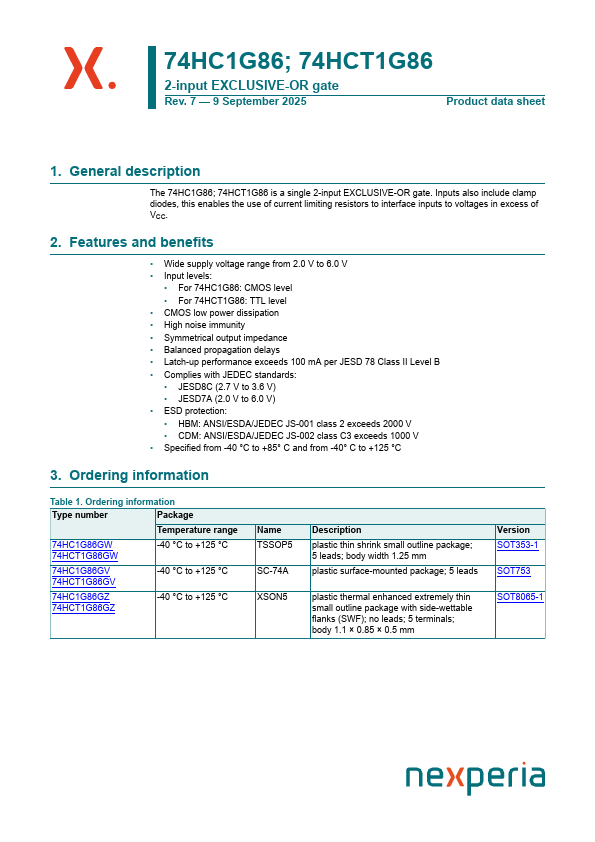

74HC1G86 Datasheet Preview — Preview of 74HC1G86 PDF

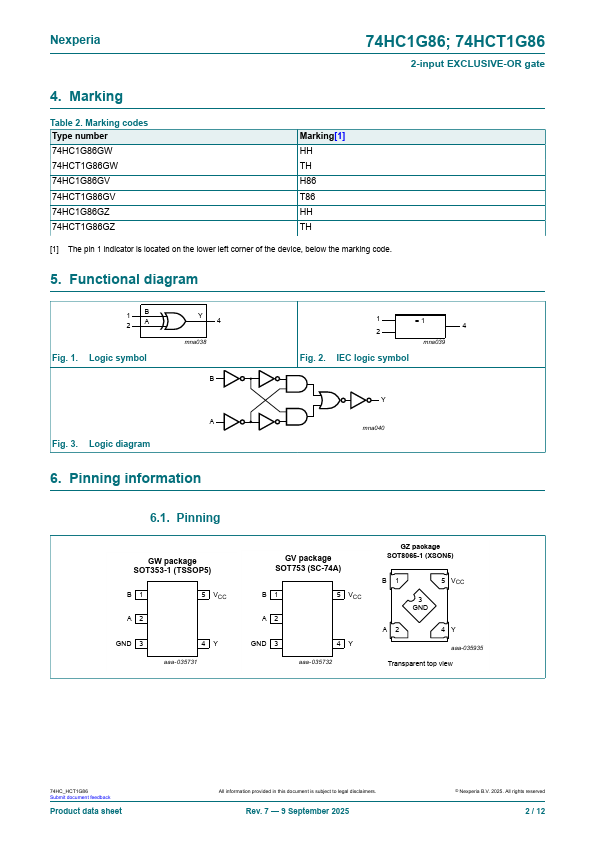

datasheet Preview Page 2

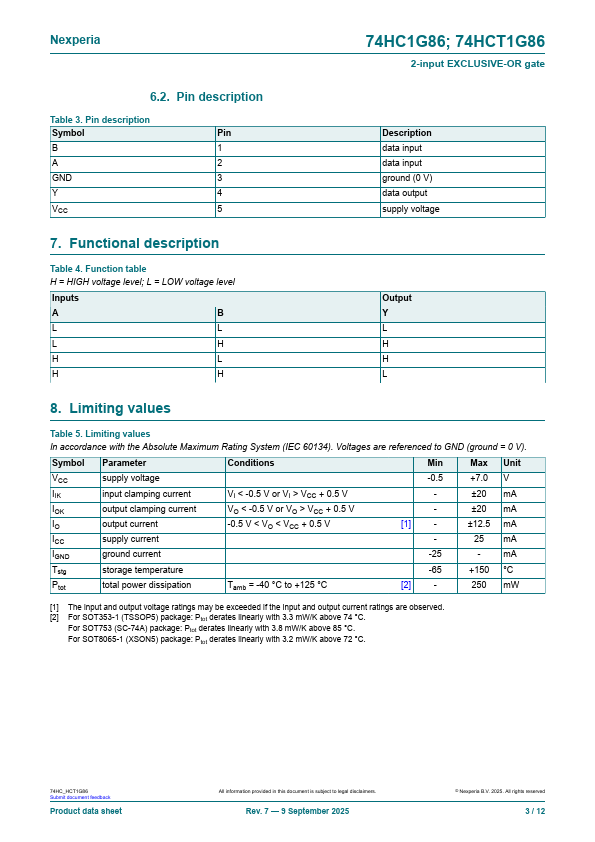

datasheet Preview Page 3

Datasheet Details

Part number	74HC1G86
Manufacturer	nexperia
File Size	266.06 KB
Description	2-input EXCLUSIVE-OR gate
Datasheet	74HC1G86-nexperia.pdf

74HC1G86 Product details

Description

The 74HC1G86; 74HCT1G86 is a single 2-input EXCLUSIVE-OR gate.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
Input levels:.
For 74HC1G86: CMOS level.
For 74HCT1G86: TTL level.
CMOS low power dissipation.
High noise immunity.
Symmetrical output impedance.
Balanced propagation delays.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
ESD protecti.
