74HC245 - Octal bus transceiver

nexperia

📥 Download Datasheet

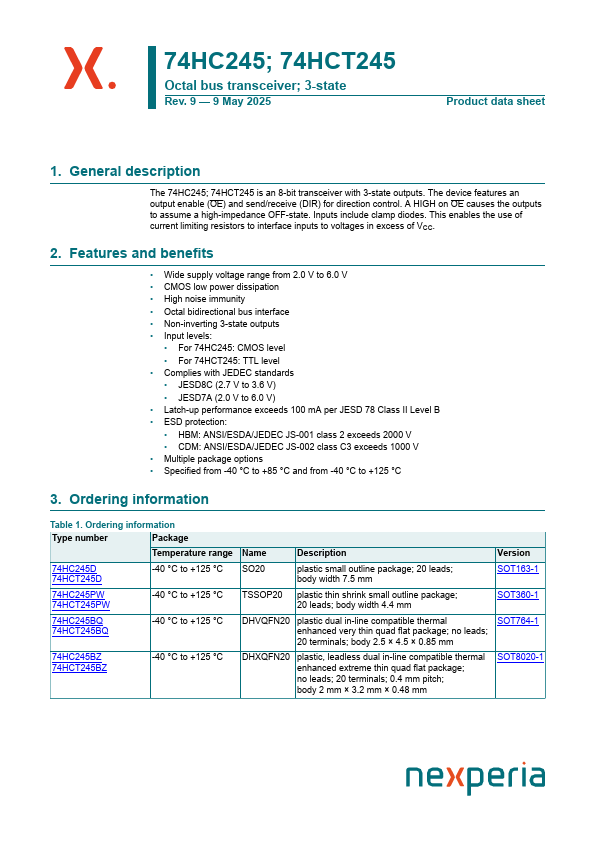

74HC245 Datasheet Preview — Preview of 74HC245 PDF

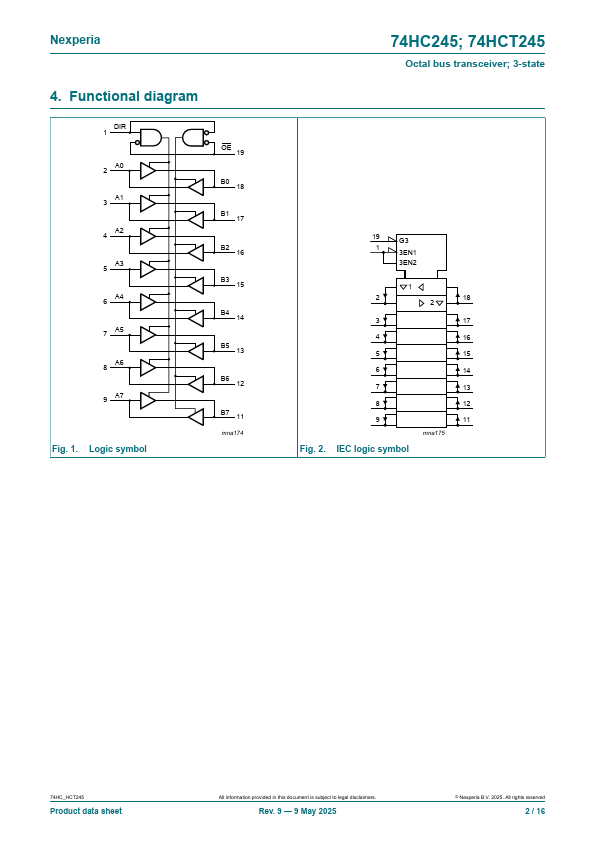

datasheet Preview Page 2

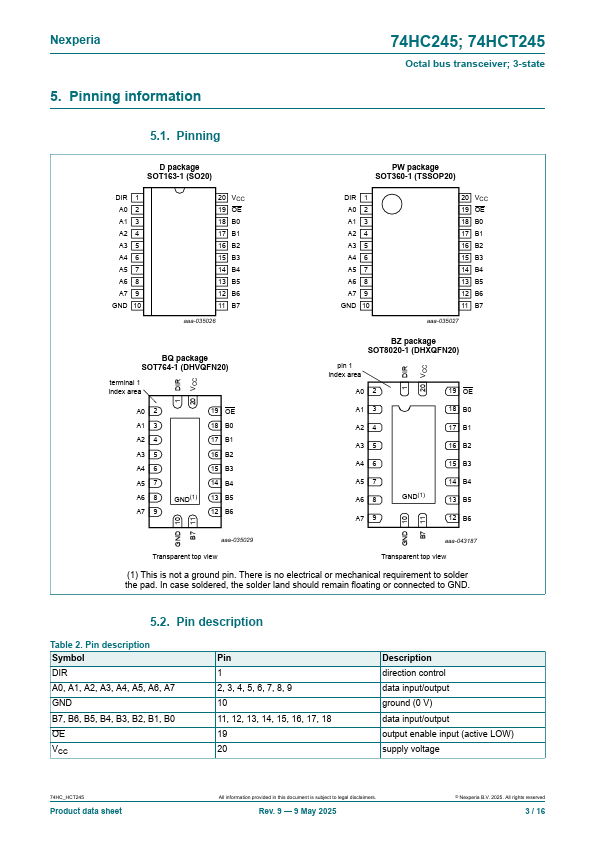

datasheet Preview Page 3

Datasheet Details

Part number	74HC245
Manufacturer	nexperia ↗
File Size	288.37 KB
Description	Octal bus transceiver
Datasheet	74HC245-nexperia.pdf

74HC245 Product details

Description

The 74HC245; 74HCT245 is an 8-bit transceiver with 3-state outputs.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Octal bidirectional bus interface.
Non-inverting 3-state outputs.
Input levels:.
For 74HC245: CMOS level.
For 74HCT245: TTL level.
Complies with JEDEC standards.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
ESD prot.
