74HC2G02DC - Dual 2-input NOR gate

This page provides the datasheet information for the 74HC2G02DC, a member of the 74HC2G02 Dual 2-input NOR gate family.

Description

The 74HC2G02; 74HCT2G02 is a dual 2-input NOR gate.

Inputs include clamp diodes.

This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features

  • Wide supply voltage range from 2.0 V to 6.0 V.
  • Input levels:.
  • For 74HC2G02: CMOS level.
  • For 74HCT2G02: TTL level.
  • Symmetrical output impedance.
  • High noise immunity.
  • Complies with JEDEC standard no. 7A (4.5 V to 5.5 V).
  • Low power dissipation.
  • Balanced propagation delays.
  • Multiple package options.
  • ESD protection:.
  • HBM JESD22-A114E exceeds 2000 V.
  • MM JESD22-A115-A exceeds 200 V.

📥 Download Datasheet

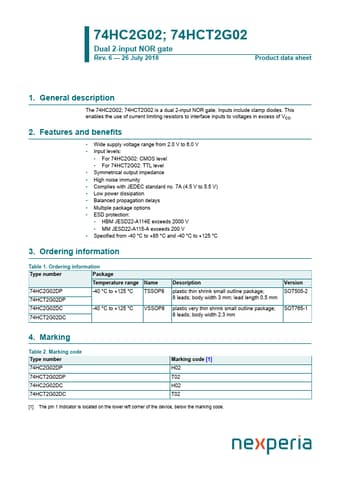

Datasheet preview – 74HC2G02DC

Datasheet Details

Part number 74HC2G02DC
Manufacturer nexperia
File Size 199.33 KB
Description Dual 2-input NOR gate
Datasheet download datasheet 74HC2G02DC Datasheet
Additional preview pages of the 74HC2G02DC datasheet.

📁 Similar Datasheet

  • 74HC2G02 - Dual 2-input NOR gate (NXP)
  • 74HC2G00 - Dual 2-input NAND gate (Philips)
  • 74HC2G08 - Dual 2-input AND gate (Philips)
  • 74HC2G125 - Dual buffer/line driver (NXP)
  • 74HC2G126 - Dual buffer/line driver (Philips)
  • 74HC2G126 - Dual buffer/line driver (NXP)
  • 74HC2G17 - Dual non-Inverting Schmitt Trigger (NXP)
  • 74HC2G32 - Dual 2-input OR gate (Philips)
  • 74HC2G34 - Dual Buffer Gate (NXP)
  • 74HC2G66 - Dual single-pole single-throw analog switch (NXP Semiconductors)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text
74HC2G02; 74HCT2G02 Dual 2-input NOR gate Rev. 6 — 26 July 2018 Product data sheet 1. General description The 74HC2G02; 74HCT2G02 is a dual 2-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. 2. Features and benefits • Wide supply voltage range from 2.0 V to 6.0 V • Input levels: • For 74HC2G02: CMOS level • For 74HCT2G02: TTL level • Symmetrical output impedance • High noise immunity • Complies with JEDEC standard no. 7A (4.5 V to 5.5 V) • Low power dissipation • Balanced propagation delays • Multiple package options • ESD protection: • HBM JESD22-A114E exceeds 2000 V • MM JESD22-A115-A exceeds 200 V • Specified from -40 °C to +85 °C and -40 °C to +125 °C 3. Ordering information Table 1.
