74HC4094DB Datasheet, Register, nexperia

74HC4094DB Features

• Register
• Complies with JEDEC standard JESD7A
• Input levels:
• For 74HC4094: CMOS level
• For 74HCT4094: TTL level
• Low-power dissipation
• ESD

PDF File Details

Part number:

74HC4094DB

Manufacturer:

nexperia ↗

File Size:

295.41kb

Download:

📄 Datasheet

Description:

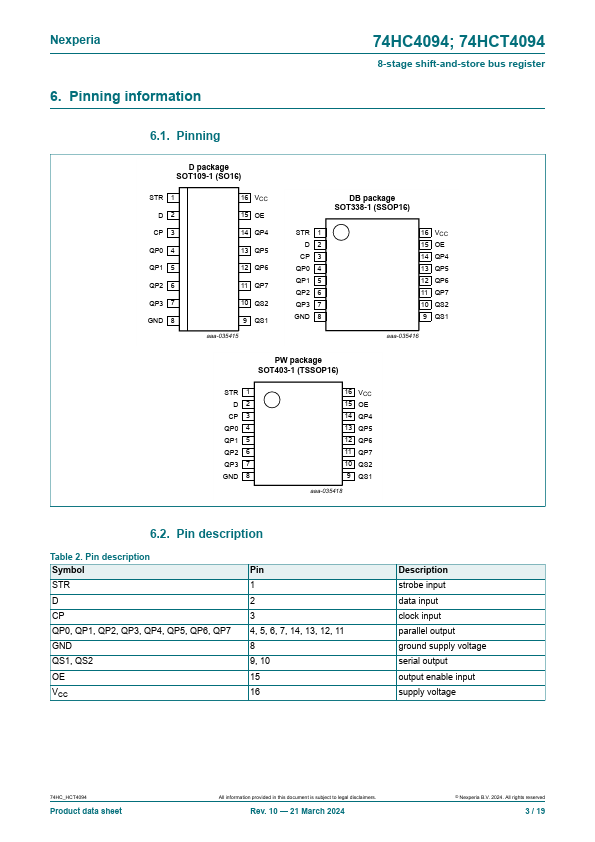

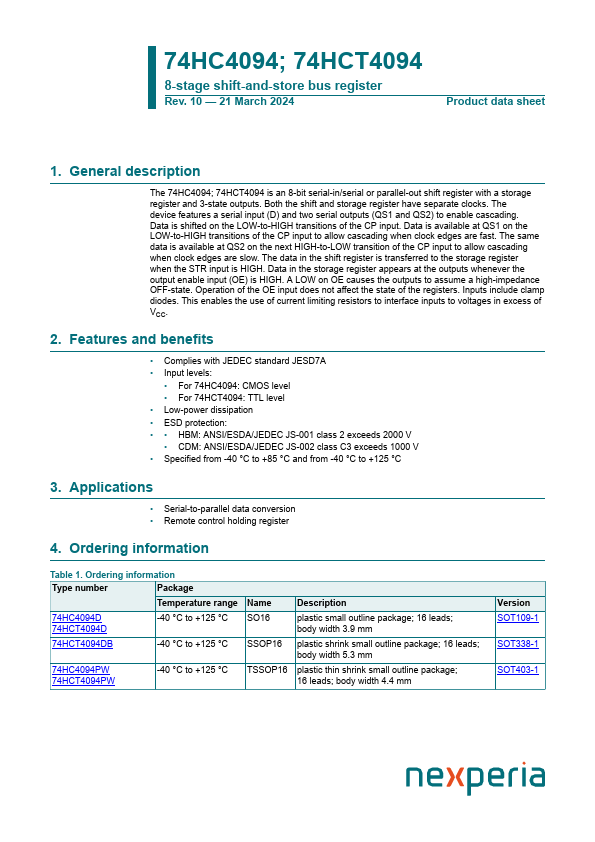

8-stage shift-and-store bus register. The 74HC4094; 74HCT4094 is an 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs. Both

74HC4094DB Application

• Applications
• Serial-to-parallel data conversion
• Remote control holding register 4. Ordering information Table 1. Ordering info
