74HCT00PW - Quad 2-input NAND gate

Product Overview

nexperia

📥 Download Datasheet

74HCT00PW Quad 2-input NAND gate by nexperia - Datasheet Preview — Datasheet preview – 74HCT00PW

Datasheet Details

Part number	74HCT00PW
Manufacturer	nexperia
File Size	263.27 KB
Description	Quad 2-input NAND gate
Datasheet	74HCT00PW Datasheet
Note	This datasheet PDF includes multiple part numbers: 74HCT00PW, 74HC00. Please refer to the document for exact specifications by model.

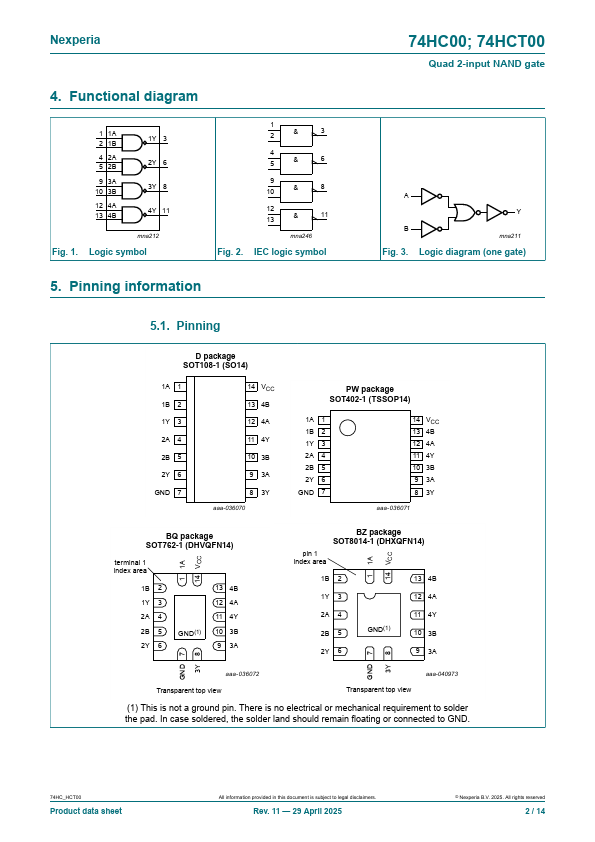

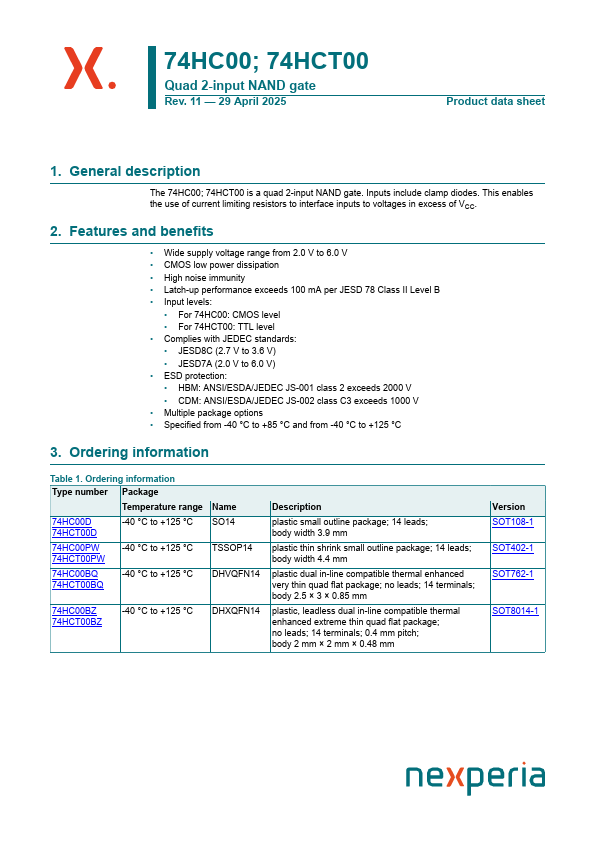

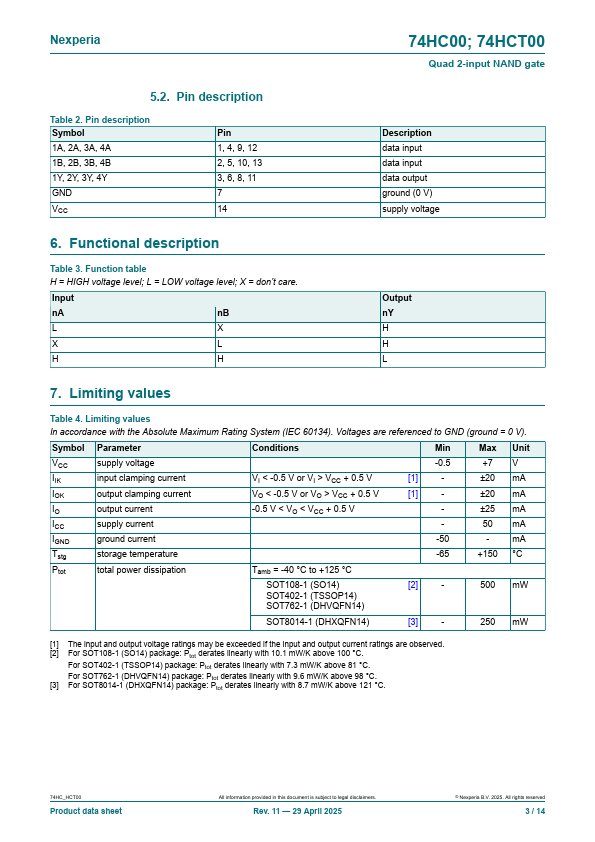

Additional preview pages of the 74HCT00PW datasheet.

Product details

Description

The 74HC00; 74HCT00 is a quad 2-input NAND gate.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Input levels:.
For 74HC00: CMOS level.
For 74HCT00: TTL level.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CDM: A.
