74HCT1G86 Datasheet, Gate, nexperia

74HCT1G86 Features

  • Gate
  • Wide supply voltage range from 2.0 V to 6.0 V
  • Input levels:
  • For 74HC1G86: CMOS level
  • For 74HCT1G86: TTL level
  • CMOS low power dissipatio

PDF File Details

Part number:

74HCT1G86

Manufacturer:

nexperia ↗

File Size:

203.95kb

Download:

📄 Datasheet

Description:

2-input exclusive-or gate. The 74HC1G86; 74HCT1G86 is a single 2-input EXCLUSIVE-OR gate. Inputs also include clamp diodes, this enables the use of current limi

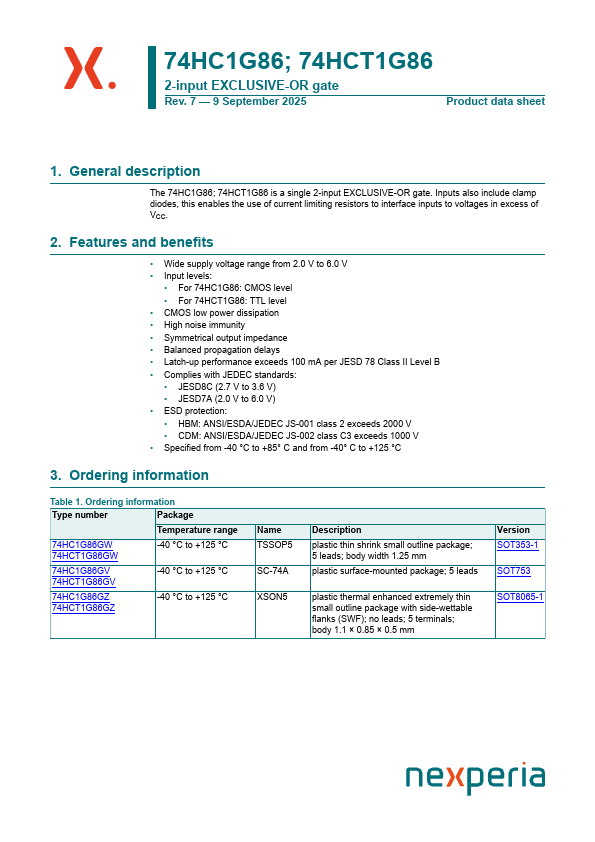

Datasheet Preview: 74HCT1G86 📥 Download PDF (203.95kb)

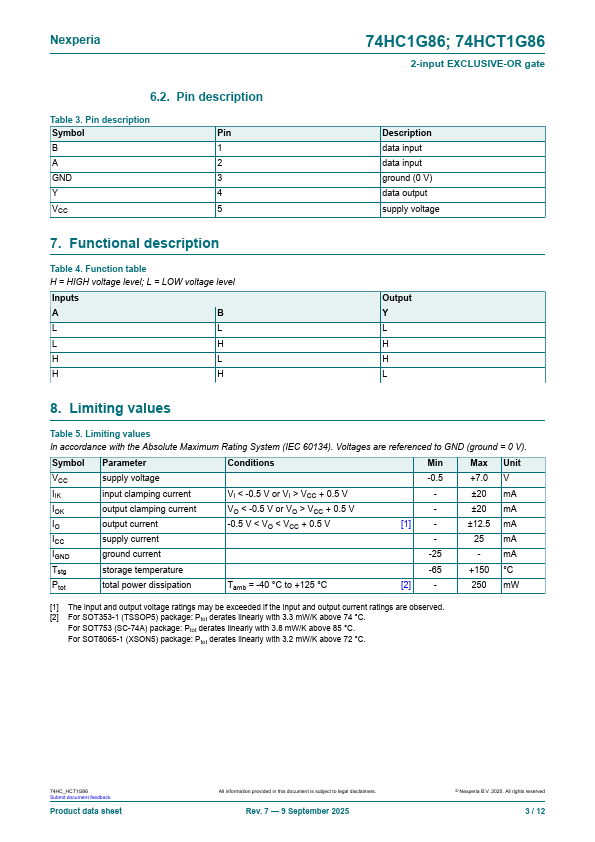

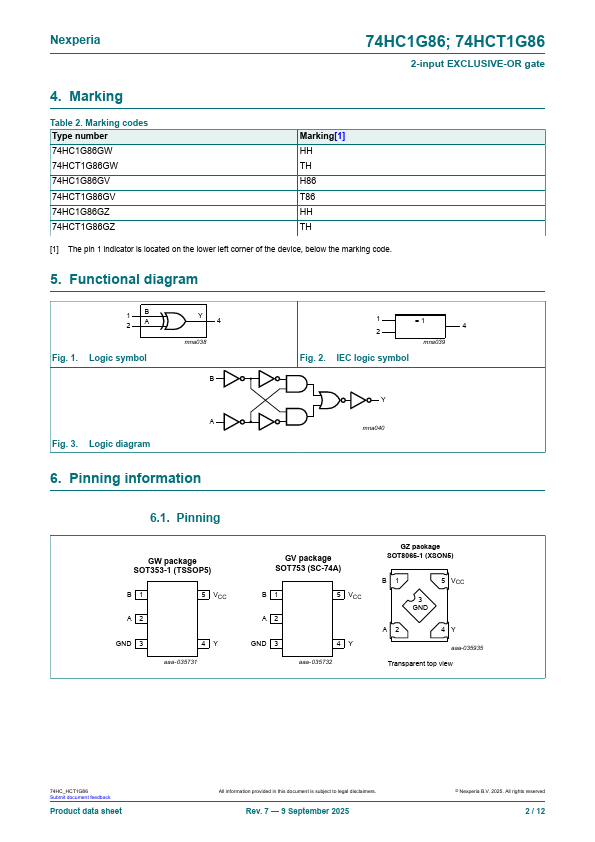

Page 2 of 74HCT1G86 Page 3 of 74HCT1G86
